Removal and installation of the rear door surround - ra72001400320x(0320)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Removal and installation of the outer sealing bar .

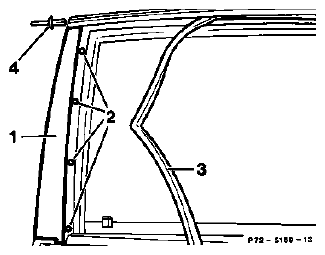

| Window rail (3) | partially remove. |
| Body-bound rivet (4) on surround (1) | remove. |
| Screws (2, 4 pieces) on surround (1) | unscrew. |
| Surround (1) | remove, by first pulling surround (1) downwards and tilting outwards at the top. Then remove surround (1) from the window shaft upwards. |
| Reinstall in opposite order. | |
| Surround 1 = 1st version | installed up to approx. 03/92. |
| Surround 2 = 2nd version | installed as of approx. 03/92. |
Difference: 2nd version, install lug (arrow) of surround (2) in the sealing frame of the door.
