Removal and installation of the rear door sealing frame - ra72001400221x(0221)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

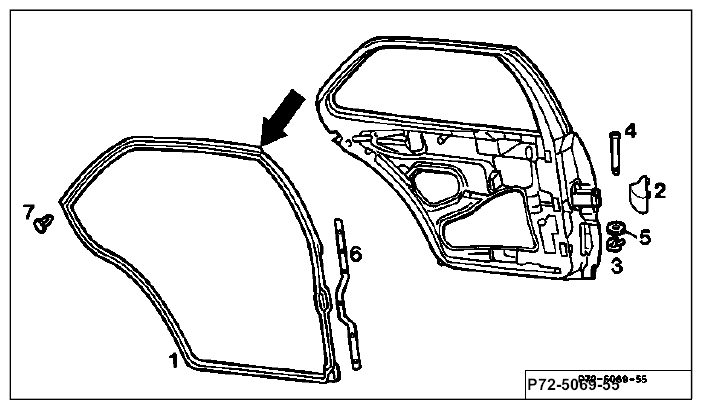

| Clip (7) and retaining strip (6) | press off with plastic wedge. |
| Sealing frame (1) | pull out of channel in rear door. |
| Rubber seal (2) | pull off. |
| Retainer (3) on bolt (4) | remove. |
| Bolt (4) | remove with special tool. |
| Plastic washer (5) | remove (2 each). |
| Sealing frame (1) | remove, to install coat channel with solution of soap and water. |
| Sealing frame (1) | press into channel with plastic wedge |
| Continue to reinstall in opposite order. | starting at top front (arrow). |
Special tools
