Removal and installation of the rear door actuating mechanism, interior - ra72001400231x(0231)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Door liner removed (Removal and installation of the lining on the rear door )

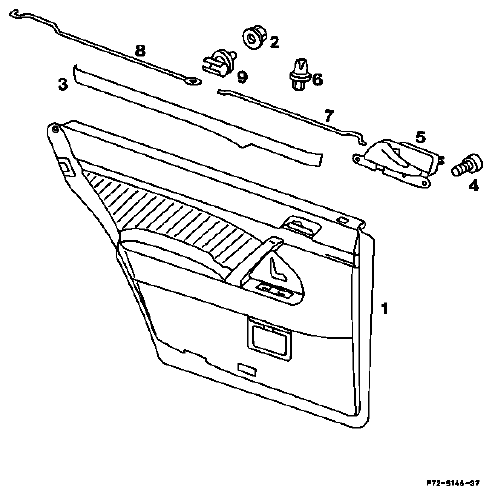

| Door liner (1) | lay down with front side on suitable surface. |
| Nuts (2) | screw off wooden trimstrip (3) (6 each, WAF 7). |
| Screw (4) | screw out of interior actuating mechanism (5). |
| Clip (6) | remove. |
| Wooden trimstrip (3) | remove from door liner (1). |
| Interior door actuating mechanism (5) | remove. Pay attention to attachment hooks! |
| Linkage (7 and 8) | unclip at clip (9). |
| Linkage (8) | unhook from door lock. |
| Reinstall in opposite order. |
