Removal and installation of the electric window lift motor in rear door - ra72001400188x(0188)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Door liner on rear door removed (Removal and installation of the lining on the rear door )
Removal
| Vapor seal below door liner | pull off. |

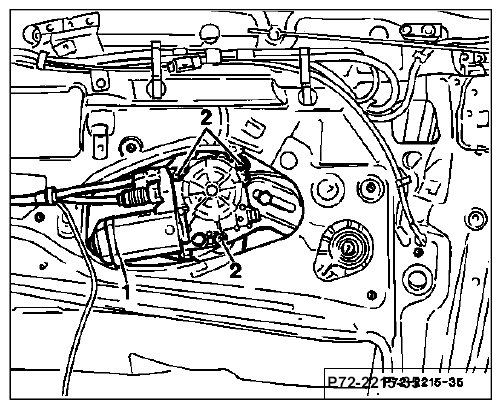

| Couplings (2 each) on window lift motor | pull off. |
| Cable strap (1) | open. |
| Intorx screws (2) (Tx 30) | screw out (9 Nm). |
| Window lift motor | remove. |
Installation
Reinstall in opposite order.
The window lift motor must be resynchronized (basic adjustment). For this purpose close window with window lift switch (automatic closing control does not function) and allow window to run against stop for 1-2 s.
