Removal and installation of Bowden cables for the air distributor switch - ra83001400124x(0124)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

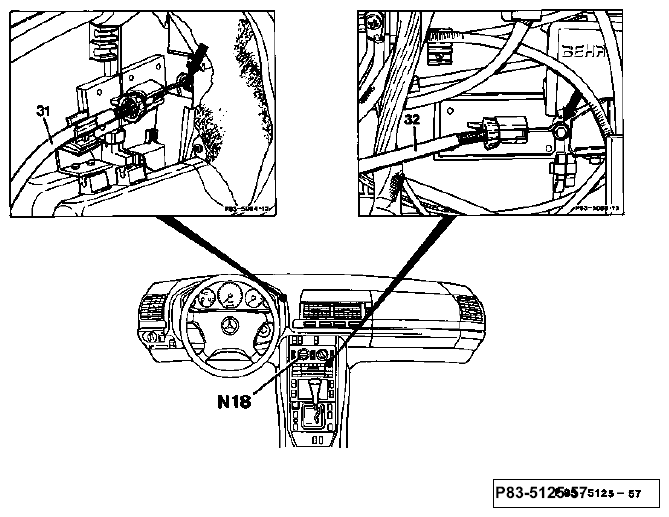

A. Cable for footwell flap, B. Cable for defroster outlet Model 140 with automatic heater control
Operation No. of Job Texts and Work Units, Standard Texts and Flat Rates:
A. Bowden cable for footwell flap
| Automatic heater control system | Remove (Removal and installation of the automatic heater control unit ). |
| Air volume switch | Remove (Removal and installation of the air volume switch ). |
| Air distributor switch | Remove (Removal and installation of the air distributor switch ). |
| Cover for footwell flap mechanism | Open and unhook Bowden cable (32, arrow). |
| Install | In the reverse sequence. Check function of system before mounting the control unit. |
B. Bowden cable for defroster outlet
| Automatic heater control system | Remove (Removal and installation of the automatic heater control unit ). |
| Air volume switch | Remove (Removal and installation of the air volume switch ). |
| Air distributor switch | Remove (Removal and installation of the air distributor switch ). |
| Instrument cluster | Remove (REMOVAL AND INSTALLATION OF THE INSTRUMENT CLUSTER ). |
| Expose Bowden cable | Slit open insulation mat along Bowden cable. |
| Cover cap for Bowden cable | Open and unhook Bowden cable (31, arrow). |
| Bowden cable | Remove from center console. |
| Install | In the reverse sequence and check function before fitting the instrument cluster and automatic heater control system. |
