Removal and installation of seat belt extender rack - ra91001400509x(0509)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

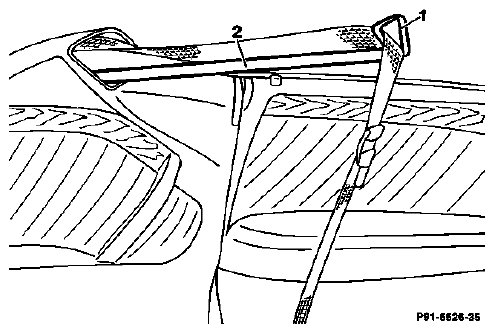

Fig 1: Identifying Seat Belt Extender Rack Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Seat belt extender	move to ready position by switching on ignition and closing door.
Ground cable	disconnect from battery (within 30 s), reconnect.
Sash guide (1)	remove from rack (2) together with seat belt, install.
Rack (2)	pull out of guide rail, insert (approx. 50 mm).
