Removal and installation of rear seat and backrest - ra91001400170x(0170)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

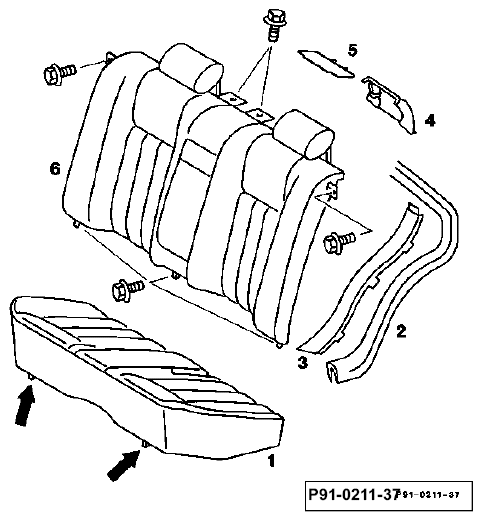

| Catches on rear seat cushion (arrows) | press outward and lift seat cushion (1), then remove seat cushion. |
| Edge protector (2) in area of rear backrest | pull off. |
| Cover (3) over wheelhouse | remove on left and right. |
| Cover (4) on head restraint bracket | pull off and remove. |
| Textile cover (5) on first aid kit housing | pull out toward front. |
| Screws on backrest frame | screw out (7 each, 10 Nm). |
| Backrest (6) complete with head restraints | lift slightly at front and pull both lines off of the vacuum element for the head restraint. |
| Backrest (6) | remove. Do not damage door entry strip. |
| When installing | reconnect vacuum line and pull rear seat belt and belt buckles out. |
