Removal and installation of complete seat belt extender - ra91001400508x(0508)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Side wall panelling in rear removed (REMOVAL AND INSTALLATION OF THE SIDEWALL PANELING, REAR ).
| Ignition/starter switch | turn to position 0. |
| Ground cable | disconnect from battery, reconnect. |

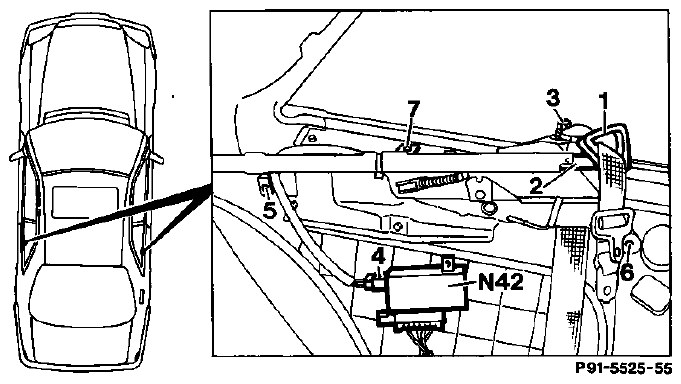

| Sash guide (1) | remove from rack (2) together with seat belt, install. |
| Screw (3) for upper belt guide fitting | screw off of B-pillar, screw on (35 Nm). |
| Plug connection (4) to control unit (N42) | disconnect, connect. |
| Screws (5, 6, 7) on seat belt extender | screw out, screw in. |
| Seat belt extender | remove, install. |
