Removal and installation of Seat Belt Lock, (Driver's Seats) - ra91001400638x(0638)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Operation carried out beforehand:
Seat removed (Removal and installation of driver's seat /Removal and installation of passenger's seat )
Operation No. of Operation Texts and Work Units, Standard
Texts and Flat Rates 91-1516

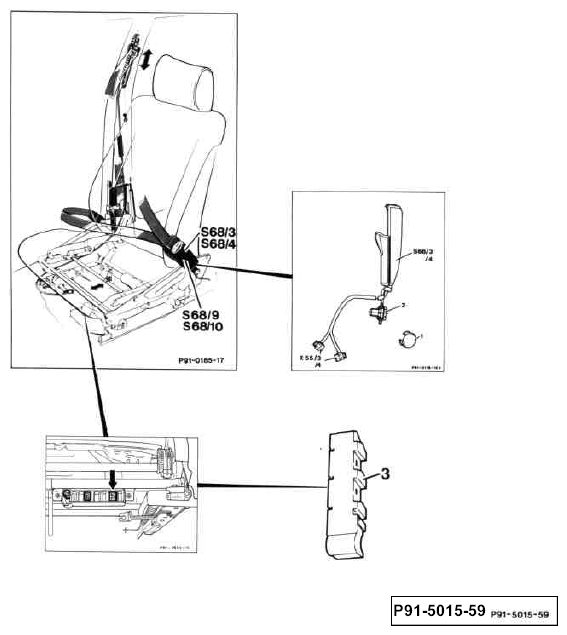

REMOVAL OF SEAT BELT LOCK
| Cable duct, cable bands and insulation tape on the underside of the seats | open. |
| Cover (3) | push off. |
| Plug connectors (arrows) | remove. |
| Cover (1) | push out with wedge. |
| Screw (2) on seat belt lock | unscrew and remove seat belt lock with cable. |
| Install in reverse sequence. |
