Removing and installing rear rubber mounts of rear axle center assembly suspension - AR35.10-P-0050-02E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Extraction And Pull-In Tool (210 589 02 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Removing rubber mounts

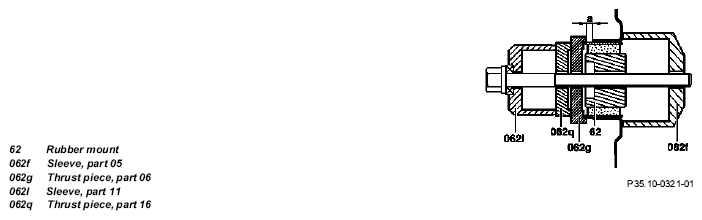

Using extraction and pull-in tool (062f, 062g, 062l, 062q) pull both rubber mounts (62) forwards out of the rear axle carrier until the thrust (062g) abuts the rear axle carrier.
To avoid expanding the rubber mount outer race, the projecting end "a" must be drawn forward with the thrust piece (062g) as far as the rear axle carrier.

Fig 2: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

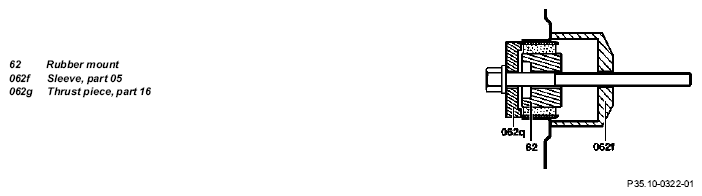

Using sleeve (062f), thrust piece (062q) and bolt (117 mm long), pull right-hand rubber mount (62) forwards out of the rear axle carrier.

Fig 3: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

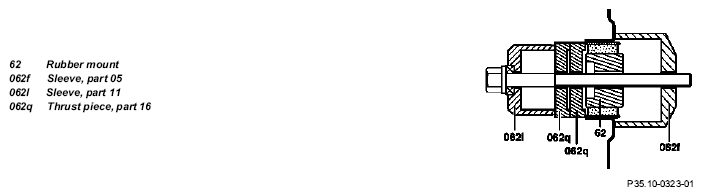

Using extraction and pull-in tool (062f, 062l, 062q) and bolt (146 mm long), pull the lefthand rubber mount (62) forwards out of the rear axle carrier.

Fig 4: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

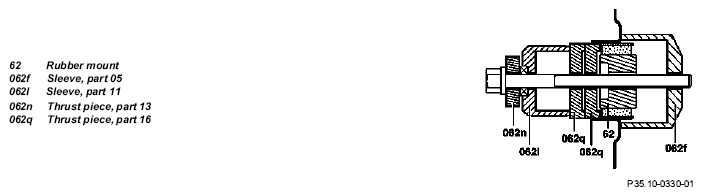

Using additional thrust piece (062n) and extraction and pull-in tool (062f, 062l, 062q) and bolt, pull left-hand rubber mount (62) forwards out of the rear axle carrier.

Fig 5: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Installing rubber mounts

Insert rubber mount in the rear axle carrier from the front so that the smooth surface (arrow) points forwards.

Fig 6: Locating Rubber Mount In Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

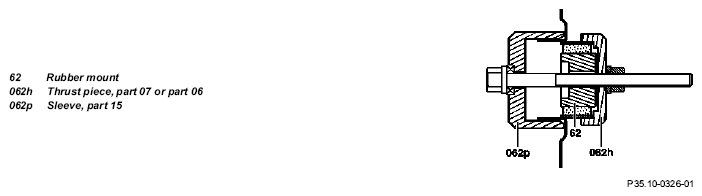

Using thrust piece (062h), sleeve (062p) and bolt (117 mm long) with nut, pull right-hand rubber mount (62) forwards into the rear axle carrier until the thrust piece (062h) abuts the rear axle carrier.

Fig 7: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

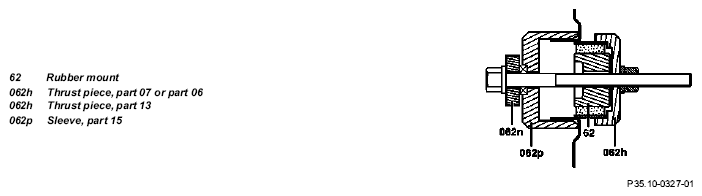

Using extraction and pull-in tool (062h, 062n, 062p) and bolt (117 mm long) with nut, pull the left-hand rubber mount (62) forwards into the rear axle carrier until the thrust piece (062h) abuts the rear axle carrier.

Fig 8: Identifying Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
