Checking installed position of center piece in rear axle carrier - AR35.10-P-0050-03A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

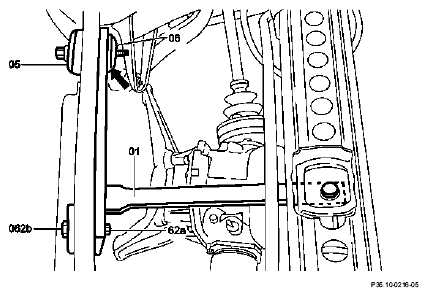

Fig 1: Identifying Extractor And Pull-In Tool (140 589 09 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Check and correct installed position of center piece in rear axle carrier using the test device (01) of the extractor and pull-in tool (05, 06).

Insert test device (01) with hexagon bolt (62a) and hexagon nut (62b) on the right side and tighten slightly.
Install pull-in tool (05, 06) on the left side.
Pull left rubber mount into the rear axle carrier (arrow) until the pin of the test arm (01) is in the center of the front oval hole in the cross member.

Fig 2: Identifying Hexagon Nut, Test Arm And Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
