Checking installed position of center assembly in rear axle carrier - AR35.10-P-0050-03E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Extraction And Pull-In Tool (210 589 02 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Using the test device of the extraction and pull-in tool, check and correct the installed position of center assembly in the rear axle carrier.

Screw extension (062d) onto the side of the test device (062a).
Mount test device (062a) on both sides with the thrust pieces (062q), sleeves (062p) and also on the left-hand side with the thrust piece (062n) with the existing bolts (117 mm long) and nuts and tighten slightly.
Pull both rubber mounts (62) evenly into the rear axle carrier until the pin (arrow) of the extension (062d) is located centrally in the hole in the cross member.

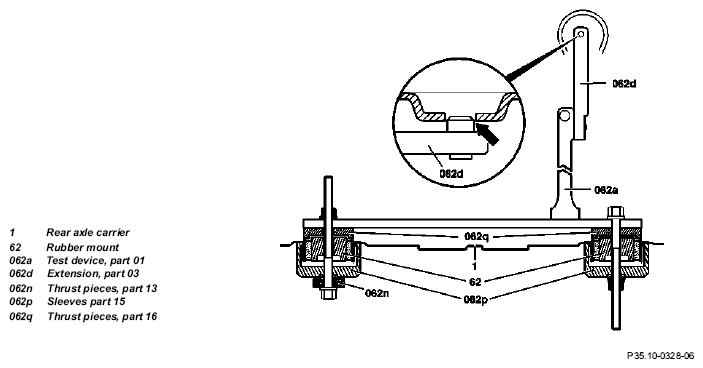

Fig 2: Locating Extension Rubber Mount, Sleeve Part And Thrust Piece
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
