Remove/install front and rear rubber bushings in rear axle mount - AR35.10-P-0040AA: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 as from 1.8.92

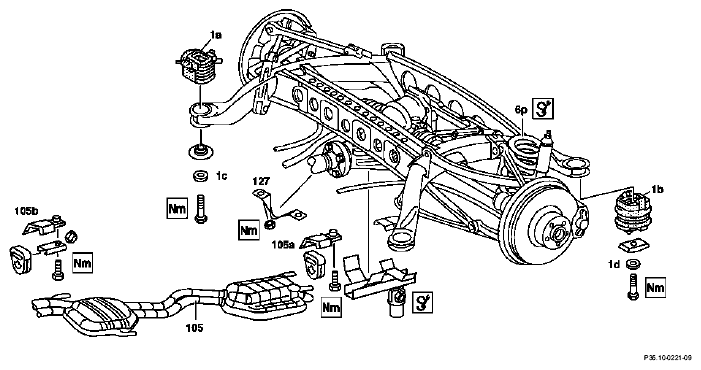

Fig 1: Identifying Rear Axle Mount Components
G05437390Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Figure item, etc. Work instructions
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the four pillars of the hoist and position the four support plates at the hoist mounting points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTESInstallation  Replace self-locking nuts and bolts
SPECIAL TOOL Assembly attachment   Figure
1a Remove/install front rubber mount in rear axle mount SPECIAL TOOL AR35.10-P-0040-02A
1b Remove/install rear rubber mount in rear axle mount SPECIAL TOOL AR35.10-P-0040-03B
1c Front bolt, rear axle mount NOTESInstallation:  Recut thread on frame floor with tap
    TORQUE SPECIFICATION *BA35.10-P-1001-01A
1d Rear bolt, rear axle mount NOTESInstallation:  Recut thread on frame floor with tap
    TORQUE SPECIFICATION *BA35.10-P-1002-01A
6p Compress, release rear spring SPECIAL TOOL AR32.20-P-0200-01A
105a, 105b Exhaust bracket on center muffler and rear muffler TORQUE SPECIFICATION Hexagon nut (105b): ↓
    Engine 104, 120 *BA49.10-P-1001-01A
    Engine 603 *BA49.10-P-1001-01C
    Engine 606 *BA49.10-P-1001-01B
127 Bracket for seat belt anchorage TORQUE SPECIFICATION Only detach on the right-hand side *BA91.40-P-1001-01B
TORQUE SPECIFICATION REAR AXLE CARRIER

Number Designation Model 140
BA35.10-P-1001-01A Self-locking bolt, front rear axle carrier rubber mount to frame floor     Nm 70
with bolt Stage 1 Nm -
flange ø 24 mm Stage 2 ∠° -
with bolt Stage 1 Nm -
Flange ø 26 mm Stage 2 ∠° -
BA35.10-P-1002-01A Self-locking bolt, rear axle carrier rear rubber mount to frame floor     Nm 70
with bolt Stage 1 Nm -
flange Ø 24 mm Stage 2 ∠° -
with bolt Stage 1 Nm -
Flange Ø 26 mm Stage 2 ∠° -
TORQUE SPECIFICATION EXHAUST SYSTEM

Number Designation Engine 104, 120
BA49.10-P-1001-01A Nut of exhaust bracket to transmission side support Nm 25
TORQUE SPECIFICATION EXHAUST SYSTEM

Number Designation Engine 604, 605, 606 except 606.964
BA49.10-P-1001-01B Nut, exhaust bracket to tapping plate on front exhaust pipe Nm 20
TORQUE SPECIFICATION EXHAUST SYSTEM

Number Designation Engine 603
BA49.10-P-1001-01C Nut of exhaust bracket to transmission side support Nm 25
TORQUE SPECIFICATION SAFETY BELTS

Number Designation Model 140
BA91.40-P-1001-01B Nut for bracket holding safety belt anchorage to floorpan Nm 270
Fig 2: Identifying Tensioning Device (202 589 02 31 00)
G05437391Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Tensioning Plates (202 589 13 63 00)
G05437392Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Tensioning Plates (202 589 14 63 00)
G05437393Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Assembly Attachment (140 589 01 62 00)
G05437394Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Extraction Tool (140 589 03 33 00)
G05437395Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Insertion Tool (140 589 04 33 00)
G05437396Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Extraction Tool (140 589 13 33 00)
G05437397Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Insertion Tool (140 589 12 33 00)
G05437398Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Lubricant A 000 989 01 60
