Pulling tapered roller bearing outer races into rear axle housing - AR35.31-P-0550-14A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Installer (140 589 01 43 00)
G04636488Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Draw in the front tapered roller bearing outer race (43e) and rear tapered roller bearing outer race (46b) up to the stop in the rear axle housing using the installer.

    NOTES Ensure that the shim (45)is inserted in order to guarantee satisfactory operation.

    NOTES When drawing in do not cant over the tapered roller bearing outer races in order to avoid damage.

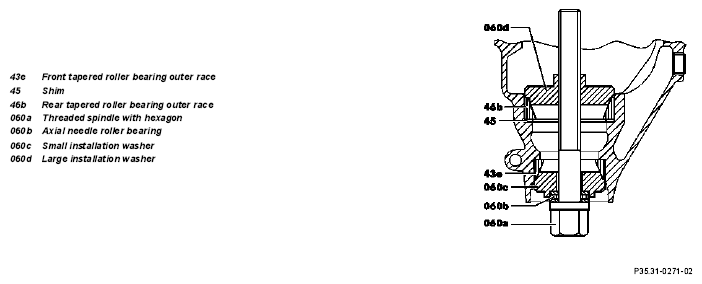

    Fig 2: Pulling Tapered Roller Bearing Outer Races Into Rear Axle Housing
    G04636489Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
