Knocking radial seal ring out of bearing cover - AR35.31-P-0550-40D

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Removal And Installation Tool (129 589 02 43 00)
G04635101Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Knock radial seal ring (32 or 32a, 70j) out of the side of the bearing covers (27b or 27c, 27d) using a punch. To do this, mount bearing cover on removal and installation tool (030a) part 01.

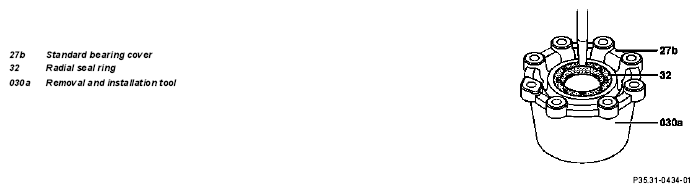

Fig 2: Identifying Standard Bearing Cover, Radial Seal Ring And Removal And Installation Tool
G04635102Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

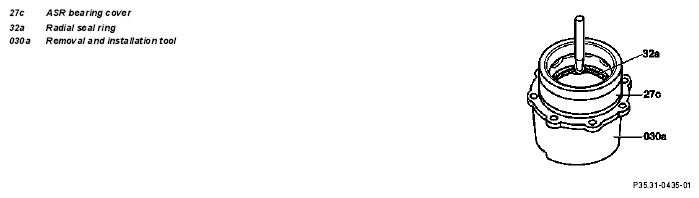

Fig 3: Identifying ASR Bearing Cover, Radial Seal Ring And Removal And Installation Tool
G04635103Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

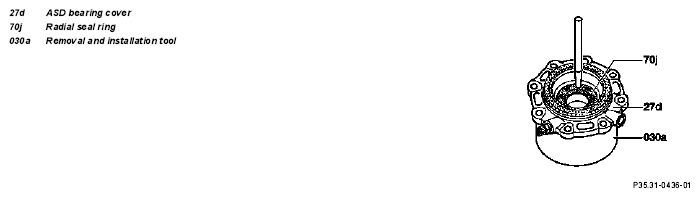

Fig 4: Identifying ASD Bearing Cover, Radial Seal Ring And Removal And Installation Tool
G04635104Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
