Distinguishing features and installation survey for rear axle center piece in models 129 and 140 - RA3500HMV0500X(35-500)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

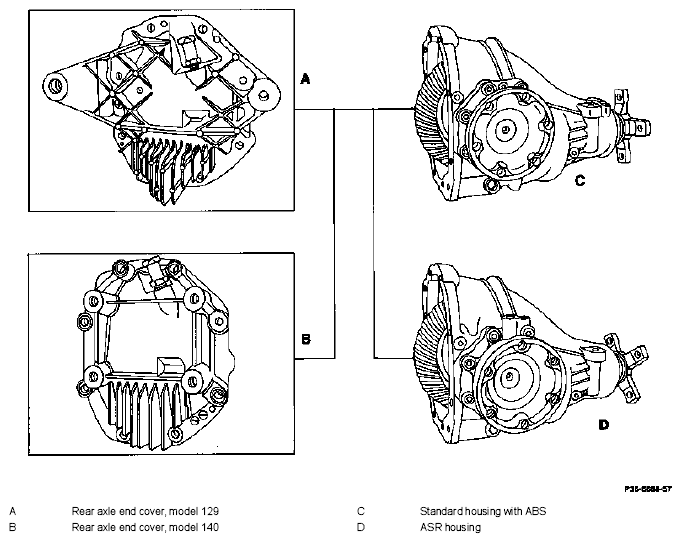

Distinguishing features of the rear axle center piece with 210 mm dia. crown wheel (reinforced)
- Breather on rear axle end cover
- Widened side bearing cover
- Connecting flange with deep-groove ball bearing
- Connecting flange with 102 mm bore pattern dia.
- Bore pattern dia. of 4-arm propeller flange 110 mm
- ASR speed sensor mounted on side bearing cover
- Oil capacity 1.4 liters
INSTALLATION SURVEY: STANDARD VERSION
| Rear axle center piece | |||
|---|---|---|---|
| Model | Ratio | No. of teeth | Oil capacity in liters |
| 129.067/076 140.050/051 140.070 | 2.65 | 45:17 | 1.4 |
| 140.056 140.076 | 2.64 | 37:14 | |
INSTALLATION SURVEY: NATIONAL VERSION
| Rear axle center piece | ||||
|---|---|---|---|---|
| Model | Ratio | No. of teeth | Oil capacity in liters | Model year |
| Gulf States 140.057 140.076 | 2.24 | 47:21 | 1.4 | As of 1993 |
