Removal and installation of the paneling on the B-pillar - ra68001400470x(0470)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

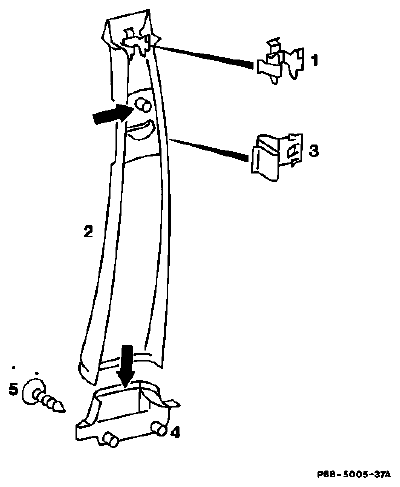

Fig 1: Identifying Paneling On B-Pillar Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Door edge protector in area of B-pillar panelling (2)	pull off.
Clip (1) on panelling (2)	unhook on B-pillar with screwdriver.
Panelling (2)	pull up out of cover (4) on main frame member.
Belt end fitting on driver's seat	screw off.
Belt on panelling (2)	pull out and lay panelling (2) to side.
Clip (1)	stick into panelling (2).
Belt end fitting	guide through opening in panelling (2).
Panelling (2)	insert into channel in panelling (4).
Sliding piece	insert into panelling (2) on guide bolt for upper belt guide fitting.
Panelling (2)	clip in at top with clip (1).
Panelling (2)	insert into clips (3) at side (4 clips).
Belt end fitting	screw onto driver's seat (35 Nm).
Door edge protector	install on B pillar.
Check	function of adjustable upper belt guide fitting

Removal and installation

Pull off door edge protector in area of B-pillar panelling.
Unhook retaining clips at top front and rear with screwdriver.
Pull panelling upward out of panel on main frame member inside.

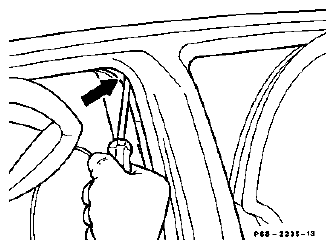

Fig 2: Unhooking Retaining Clips At Top Front And Rear With Screwdriver
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

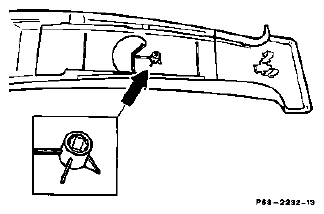

Retaining clip at top in B-pillar panelling

Fig 3: Locating Retaining Clip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out bolt on belt end fitting.
Pull belt out of B-pillar panelling and lay panelling to side.
Insert retaining clip in top of panelling.
Guide belt end fitting through opening in panelling.
Insert panelling into channel in panel for main frame member inside.

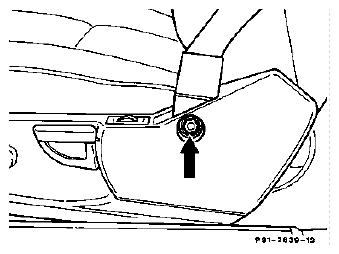

Fig 4: Locating Bolt On Belt End Fitting
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Insert sliding piece (arrow) on guide bolt for belt height adjustment.
Clip in panelling at top and clip into insert clips on B-pillar at sides.

Fig 5: Inserting Sliding Piece On Guide Bolt
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw belt end fitting onto driver's seat (35 Nm).
Install door edge protector.
Check function of belt height adjustment.

Fig 6: Locating Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
