Removal and installation of the center air nozzle - ra68001400115x(0115)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Spectacles compartment removed (Removal and installation of the spectacles compartment )

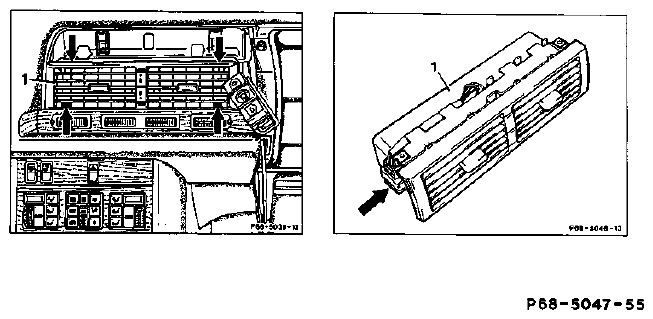

| Screw (arrows, top) | screw out. |
| Catches (arrows) | push up. |
| Center nozzle (1) | pull out. |
| Plug connection (arrow) | disconnect. |
| Center nozzle (1) | store at side. |
| Plug | plug onto center nozzle. |
| Center nozzle (1) | install in air duct and push in until catches snap in audibly. |
| Screws (arrows, top) | screw in. |
| Continue to reinstall in opposite order. |
