Remove/install parking brake pedal assembly - AR42.20-P-0510A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 129, 140, 202, 208, 210
Courtesy of MERCEDES-BENZ OF NORTH AMERICA. MODIFICATION NOTES
| 11.12.02 |
Notes on safety for lifting platform, included for the first time |
|
AS00.00-Z-0010-01A |
| 11.12.02 |
Check version of pedal assembly, included for the first time |
Step 15.1 |
BT42.20-P-0510-01A |
  |
Remove/Install |
|
|
 |
Lethal injuries
are possible if vehicle slips off of lifting platform |
Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Notes on repairs to brake system |
|
AH42.00-P-0003-01A |
| 1.1 |
Remove heat shield of exhaust system. |
Models 129, 140 |
|
| 2 |
Pre-tension automatic cable slack adjuster |
Model 140 |
AR42.20-P-0520-01A |
| |
|
Models 202, 208, 210 |
AR42.20-P-0520-01B |
| 3 |
Detach return spring (94) |
|
|
| 4 |
Slacken adjusting screw (89) |
Model 129 |
|
| 5 |
Remove cover below instrument panel |
Model 129 |
ra68001290150x |
| |
|
Model 140 |
ra68001400150x |
| |
|
Model 202 |
AR68.10-P-1500E |
| |
|
Model 208 |
AR68.10-P-1500K |
| |
|
Model 210 |
AR68.10-P-1500F |
| 6 |
Remove front left floor covering |
Model 129 |
|
| |
Model 140 |
|
|
| |
|
Model 202 |
AR68.20-P-2050E |
| |
|
Model 208 |
|
| |
|
Model 210 |
AR68.20-P-2050F |
| 7 |

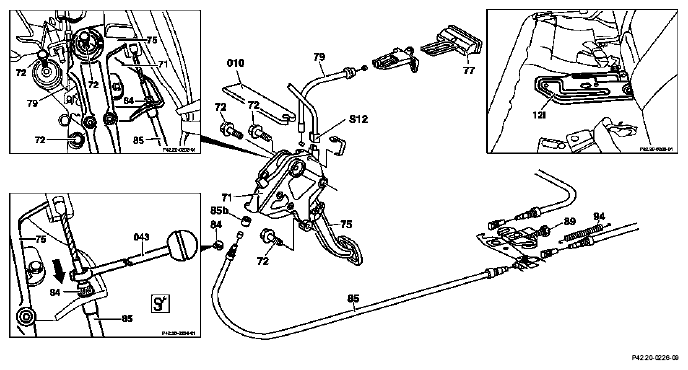

Detach brake cable (85) from tensioning shackle at parking brake pedal (75) using snap-release tool (043) |
The brake cable (85) can also be removed by breaking the clamping ring (84). To install, insert a new clamping ring (84) in the groove in the brake cable (85).Pay attention to the rubber grommet (85b). |
|
| |
|
Snap-release tool |
Fig 2 |
| 8.1 |
Unscrew bolts (72) and take off pedal assembly (71) |
On vehicles with nut welded on at front wall pillar.
Model 210: The pedal assembly (71) is fixed with two bolts. |
|
| |
|
 |
*BA42.20-P-1001-01A |
| 8.2 |
Unscrew upper bolts (72), loosen lower bolt (72) several turns and detach pedal assembly (71) |
On vehicles with nut pressed into front wall pillar. |
|
| |
|
The pressed in nut can fall into the front wall pillar if the lower bolt (72) is unscrewed. |
|
| 9 |
Unplug connector at parking brake indicator switch (S12) |
Raise pedal assembly (71) slightly to do this. |
|
| 10 |
Detach cable (79) from release lever (77) |
|
|
| 11 |
Detach cable (7) from pedal assembly (71) using tool (010). |
|
|
 |
Tool for releasing parking brake control cable |
|
WF58.50-P-4220-01A |
| 12 |
Remove pedal assembly (71) |
Do not
loosen torx bolts on back of pedal assembly (71) otherwise the pedal assembly (71) will be damaged beyond repair. |
|
 |
Friction brake of parking brake pedal assembly, function |
|
GF42.20-P-1000A |
| 13 |
Install in the reverse order |
|
|
| 14.1 |
Relieve load on automatic slack adjuster. |
Models 140, 202, 208, 210 |
AR42.20-P-0520-02A |
 |
Inspecting |
|
|
| 15.1 |
Check version of pedal assembly (71) |
Model 129 |
|
 |
Parking brake pedal assembly modified |
|
BT42.20-P-0510-01A |
| 16.1 |
Adjust parking brake |
Model 129 |
AR42.20-P-0540A |
PARKING BRAKE
| Number |
Designation |
Model 129 |
Model 140 |
Model 202 |
Model 208 |
| BA42.20-P-1001-01A |
Bolt of pedal assembly, foot-operated parking brake on front wall pillar |
Nm |
12 |
12 |
12 |
12 |
PARKING BRAKE
| Number |
Designation |
Model 210 |
| BA42.20-P-1001-01A |
Bolt of pedal assembly, foot-operated parking brake, on front wall pillar |
Nm |
12 |
