Brake system - inspect fluid level - AP42.10-P-4210Z

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 124, 129, 140, 163, 168, 170, 202, 203, 208, 209, 210, 211, 215, 230

MODEL 414

MODEL 220 except CODE (Z07) Top protection

Shown on model 202

Fig 1: Identifying Brake System - Inspect Fluid Level Show On Model 202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

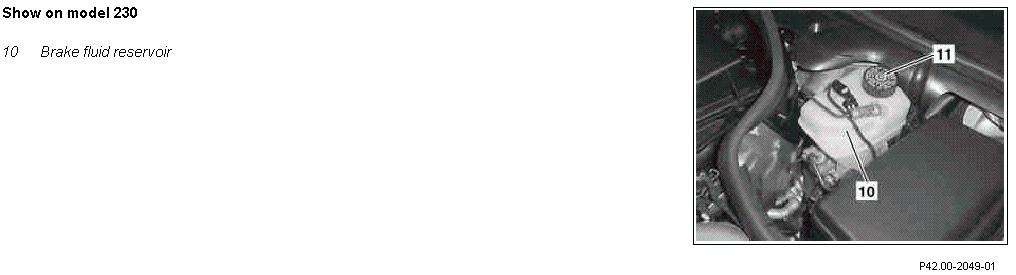

Shown on model 230

Fig 2: Identifying Brake System - Inspect Fluid Level Show On Model 230

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Check
	Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes	All models	AH42.50-P-0001-01A
	Notes on repairs to brake system	All models	AH42.00-P-0003-01A
1	Check fluid level in the brake system	The fluid level must be between the "MAX." and "MIN." markings stamped on the brake fluid expansion reservoir. If the fluid level is too low, find and eliminate the cause and check the brake disks and brake pads for wear and condition. Check brake system, ABS, ETS, ASR, ESP, SBC (also pressure reservoir, charging pump and charge plunger unit in the wheelhouse) for leaks.
