Acceleration slip regulation (ASR V/ETS), location of electrical/electronic components - GF42.40-P-0005-03B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Type 140

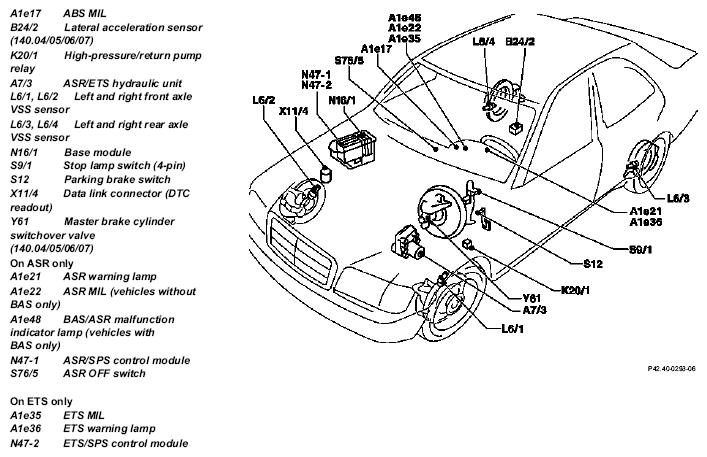

Fig 1: Identifying Acceleration Slip Regulation (ASR V/ETS) And Electrical/Electronic Components Location
G05438847Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
