Removing and installing Parktronic system warning indicators - ra54001401068x(1068)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
A. Instr. panel left, B. Instr. panel center, C. Rear done lamp Model 140
Preliminary work:
Cover for loudspeaker removed (REMOVAL AND INSTALLATION OF THE LOUDSPEAKER COVER ).
- Warning indicator (A44/1), instrument panel, left
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

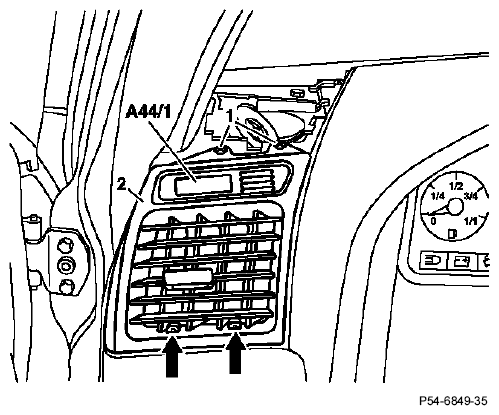

Screws (1) unscrew, screw in. Catches (arrows) lift. Air nozzle (2) remove, install. NOTE: When installing the air nozzle (2) insert into air duct and allow catches (arrow) to engage audibly.Connector on warning indicator (A44/1) disconnect, reconnect. Warning indicator (A44/1) unclip, clip in. - Warning indicator (A44/4), instrument panel, center
Preliminary work:
Lock cylinder for glove box removed (REMOVAL AND INSTALLATION OF THE GLOVE COMPARTMENT LOCK CYLINDER ).
Spectacles compartment removed (REMOVAL AND INSTALLATION OF THE SPECTACLES COMPARTMENT ).
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

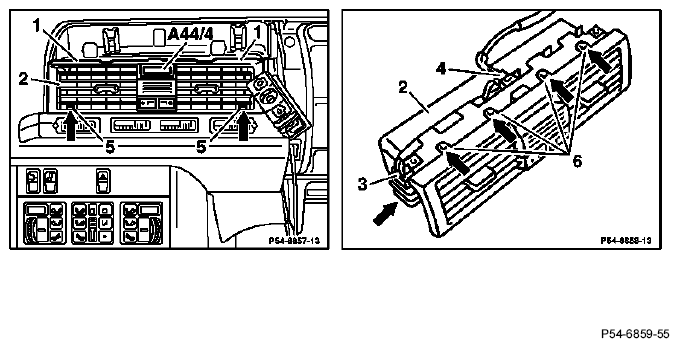

Screws (1) unscrew, screw in. Catches for center nozzle (arrows 5) lift. Center nozzle (2) remove, install. NOTE: When installing center nozzle (2) the catches (arrows 5) must engage audibly.Connectors (3 and 4) disconnect, reconnect. Catches for vent grate (arrows 6) lift, catch. NOTE: When installing the vent grate the catches (arrows 6) must arrest audibly.Warning indicator (A44/4) remove, install. - Warning indicator (A44/3), rear dome lamp

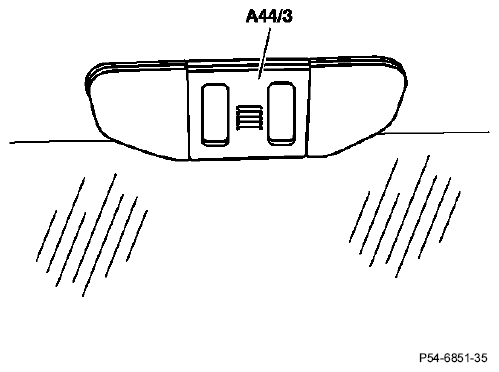

| Rear dome lamp | remove, install. |
| Warning indicator (A44/3) | unclip, clip in. |
| Connector | disconnect, reconnect. |
