Removing and installing hot wire mass air flow sensor - AR07.41-P-1453F

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 120.980 /981

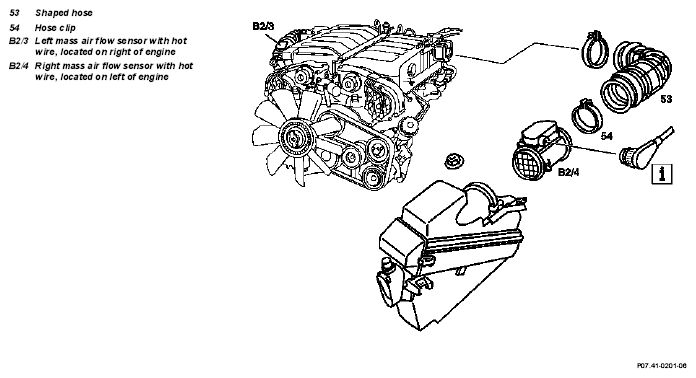

Fig 1: Identifying Hot Wire Mass Air Flow Sensor Components - Engine 120.980 /981
G04677831Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig. item, etc. Work instructions
IMPORTANTInstallation  Hot wire mass air flow sensor connector Tighten union nut until it engages
53 Shaped hose INSPECT Replace if necessary
