Location of Components - RA0705HFM0015X (07.5-0015)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

A Engine 104 HFM

Components on engine

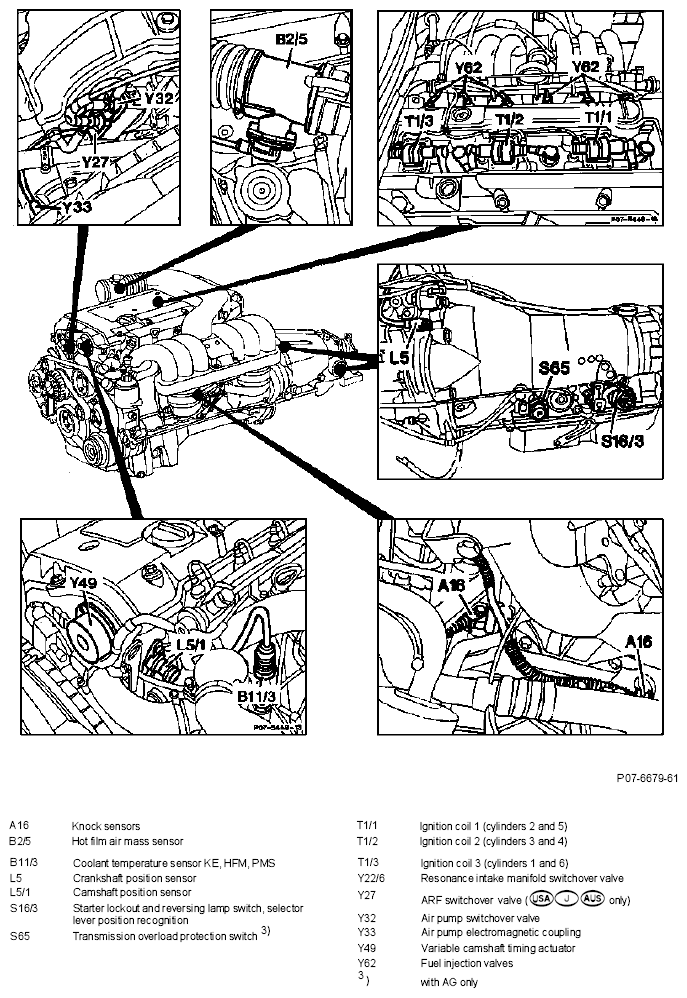

Fig 1: Identifying Ignition System Components Location - Engine 104 HFM

G04678359

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124, 140

Components in engine compartment

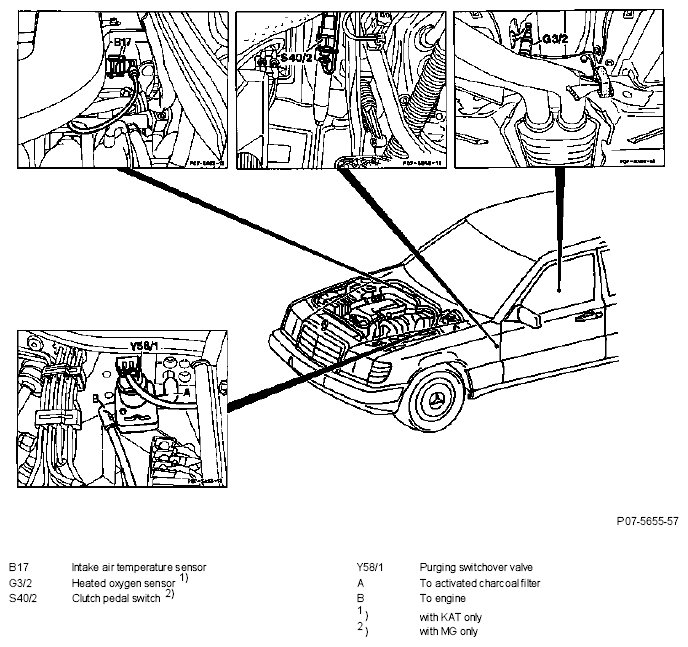

Fig 2: Identifying Ignition System Components Location - Models 124, 140 (1 Of 2)

G04678360

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

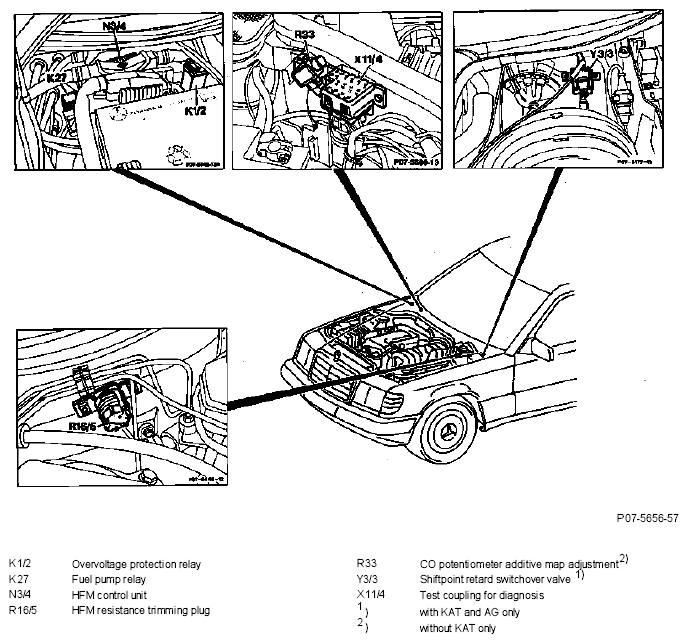

Fig 3: Identifying Ignition System Components Location - Models 124, 140 (2 Of 2)

G04678361

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 129

Components in engine compartment

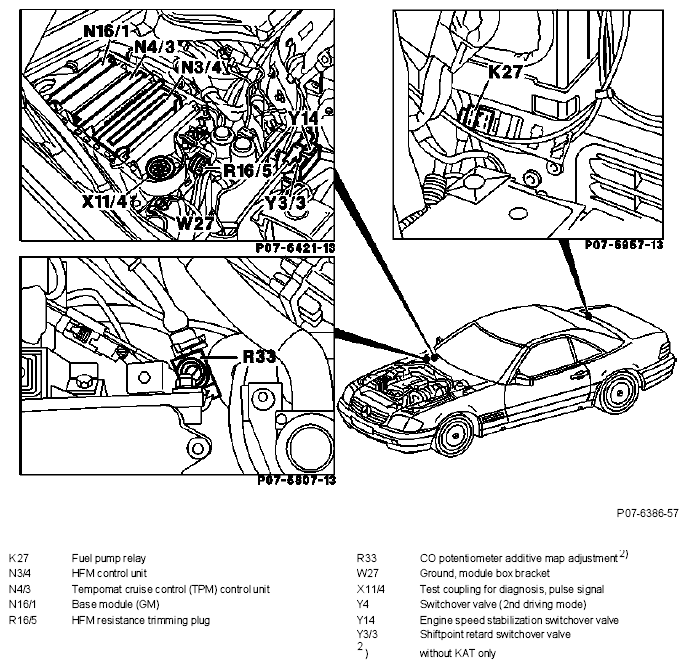

Fig 4: Identifying Ignition System Components Location - Models 129 (1 Of 2)

G04678363

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

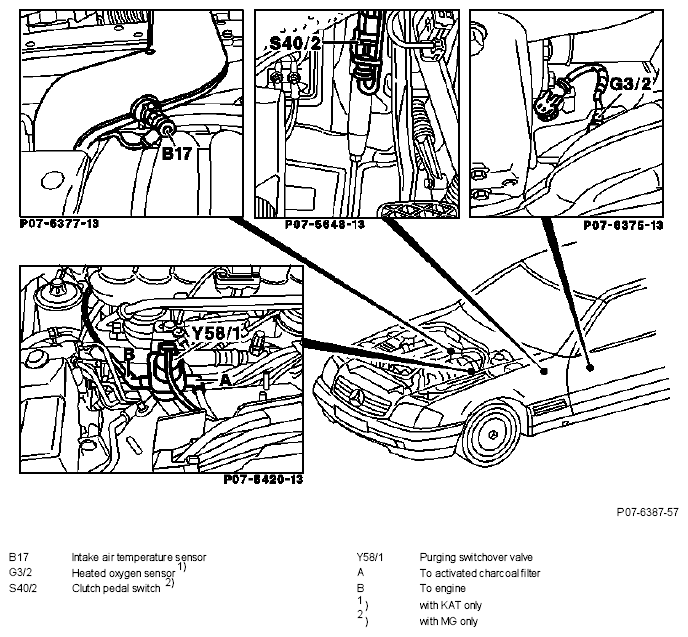

Fig 5: Identifying Ignition System Components Location - Models 129 (2 Of 2)

G04678364

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 202

Components in engine compartment

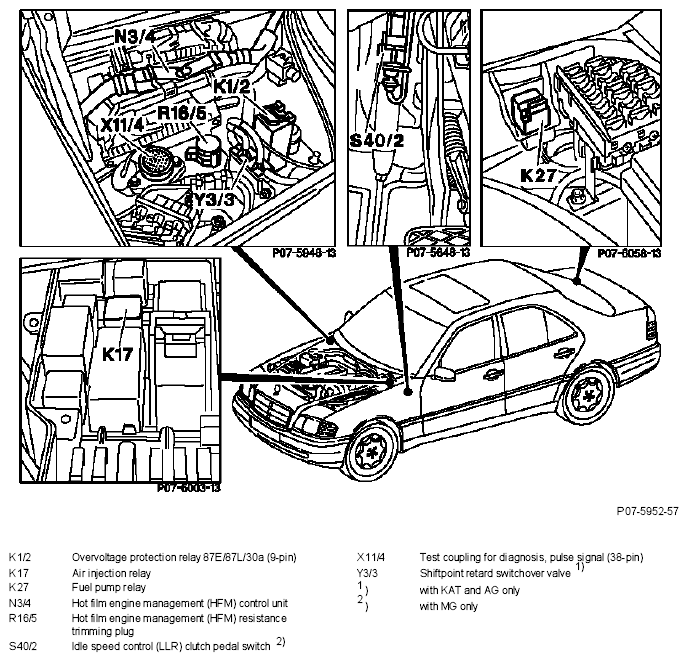

Fig 6: Identifying Ignition System Components Location - Models 202 (1 Of 2)

G04678365

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

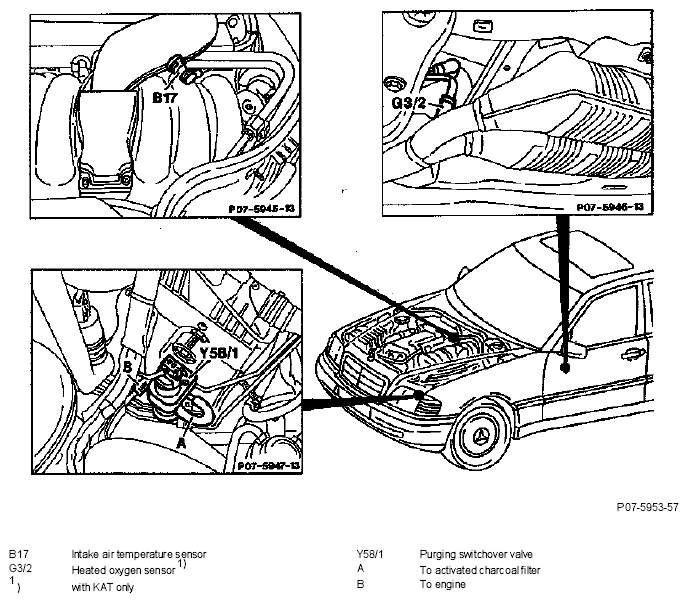

Fig 7: Identifying Ignition System Components Location - Models 202 (2 Of 2)

G04678366

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

B Engine 111 HFM

Components on engine

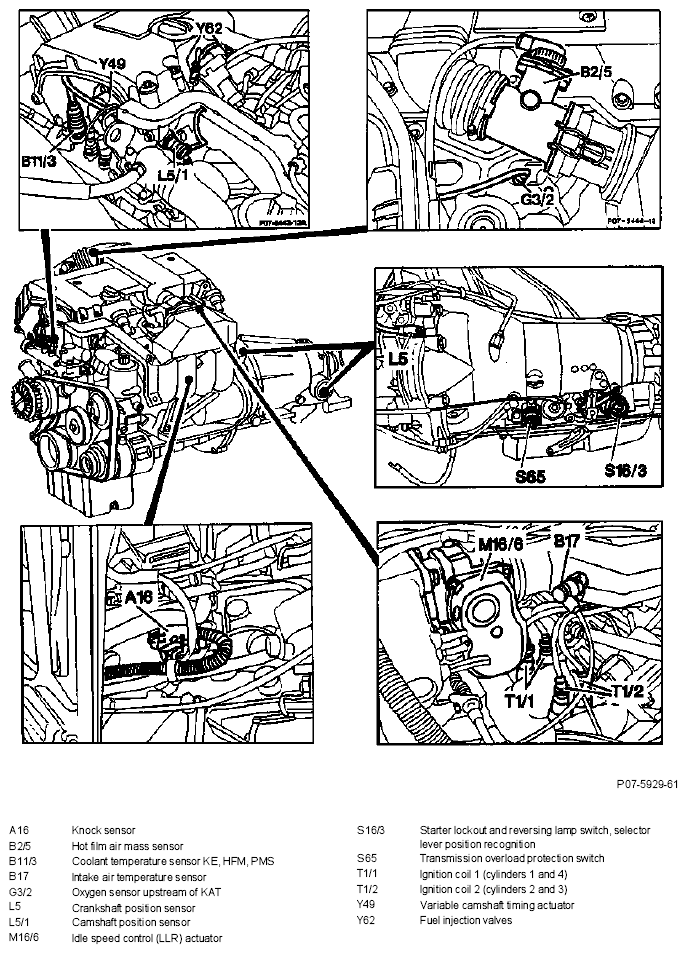

Fig 8: Identifying Ignition System Components Location - Engine 111 HFM

G04678367

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 124

Components in engine compartment

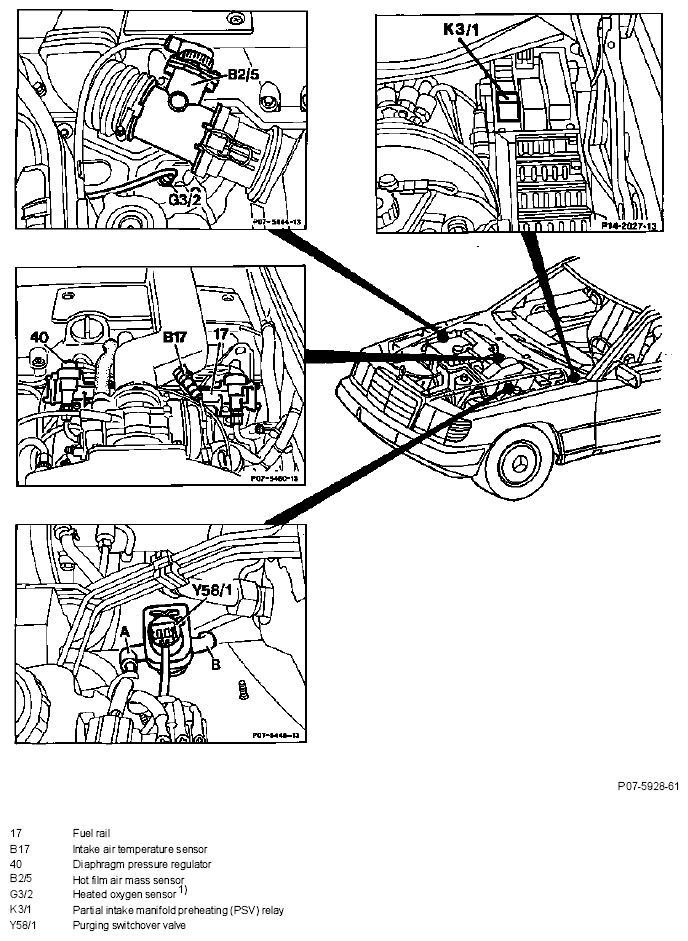

Fig 9: Identifying Ignition System Components Location - Model 124 (1 Of 2)

G04678368

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

Fig 10: Identifying Ignition System Components Location - Model 124 (2 Of 2)

G04678369

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 202

Components in engine compartment

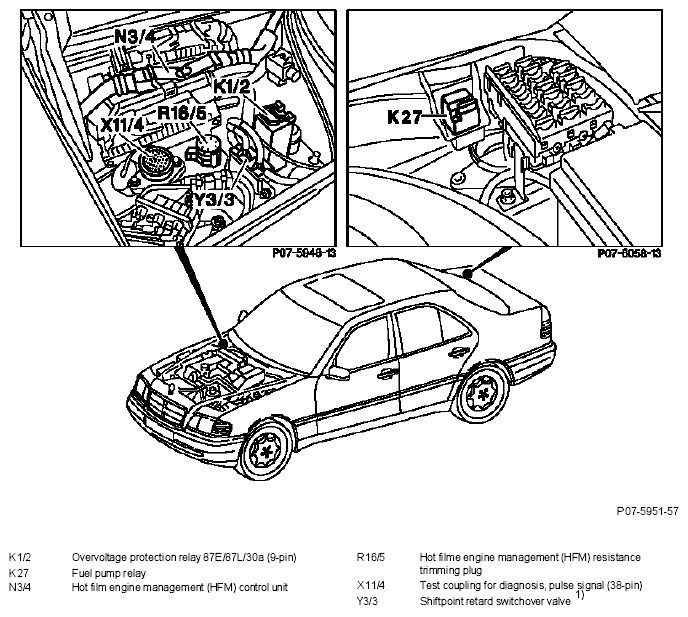

Fig 11: Identifying Ignition System Components Location - Model 202 (1 Of 2)

G04678370

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

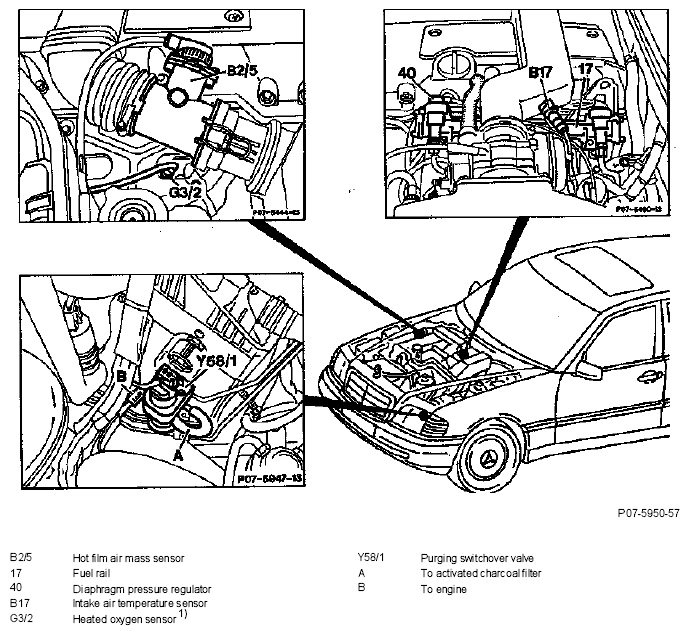

Fig 12: Identifying Ignition System Components Location - Model 202 (2 Of 2)

G04678371

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

C Engine 111 PMS

Components on engine

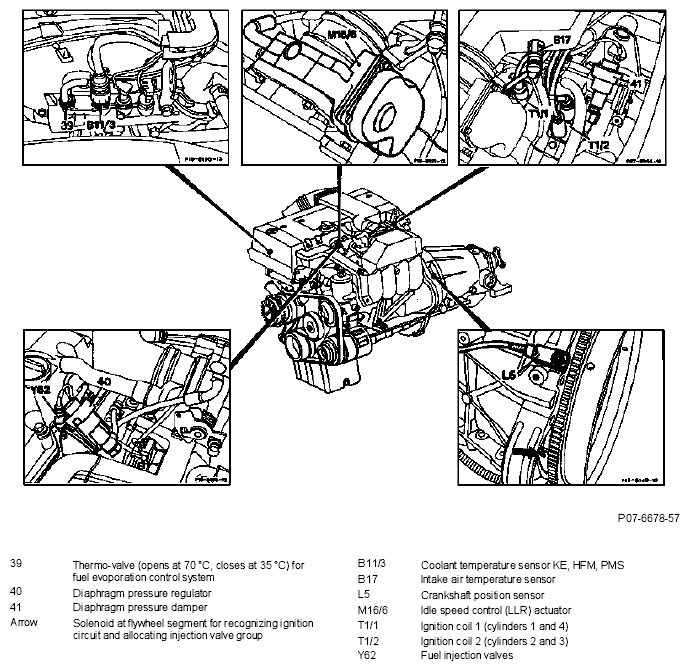

Fig 13: Identifying Ignition System Components Location - Engine 111 PMS

G04678372

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 124

Components in engine compartment

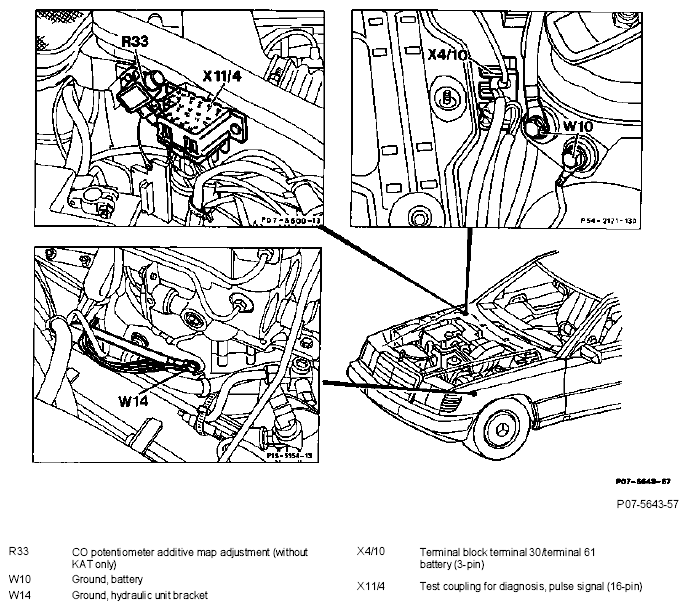

Fig 14: Identifying Ignition System Components Location - Model 124 (1 Of 2)

G04678373

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Components in engine compartment

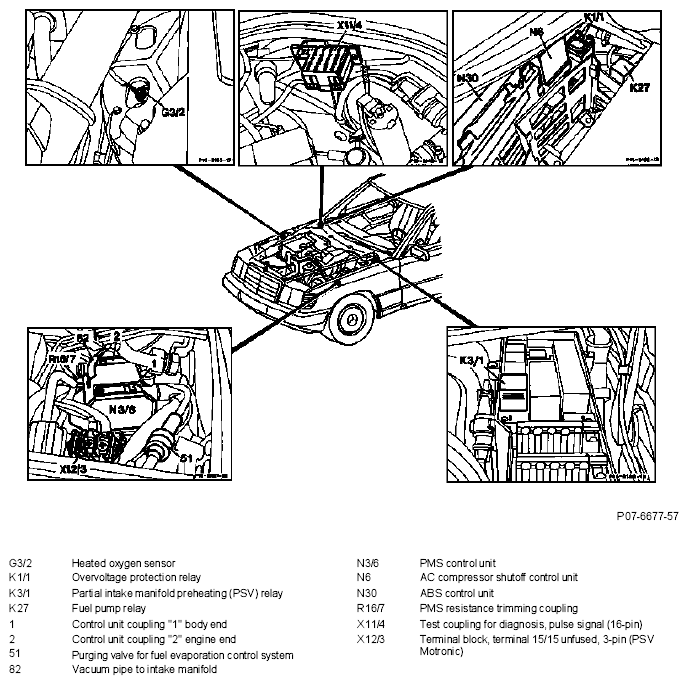

Fig 15: Identifying Ignition System Components Location - Model 124 (2 Of 2)

G04678374

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 202

Components in engine compartment

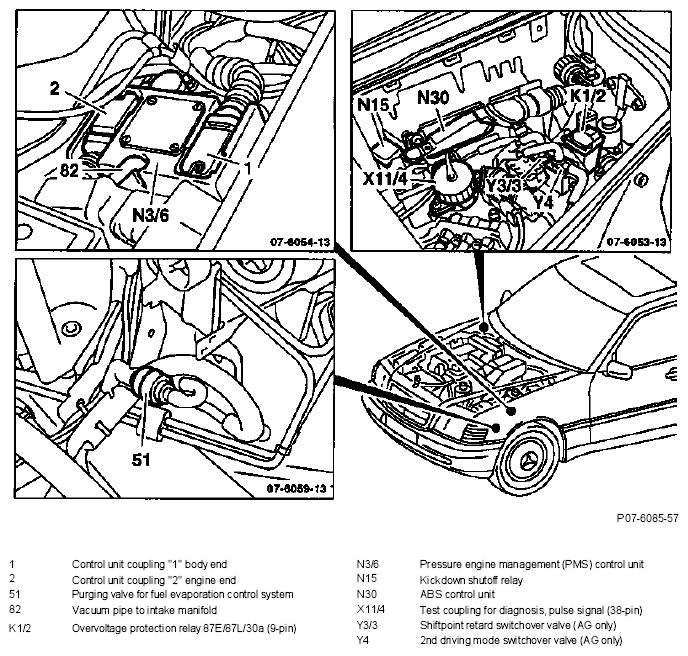

Fig 16: Identifying Ignition System Components Location - Model 202

G04678375

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
