U. Electronic diesel system (EDS) D. Influencing variables of EDS Engines 602.96, 603.96/97 Turbo
U. Electronic diesel system (EDS)

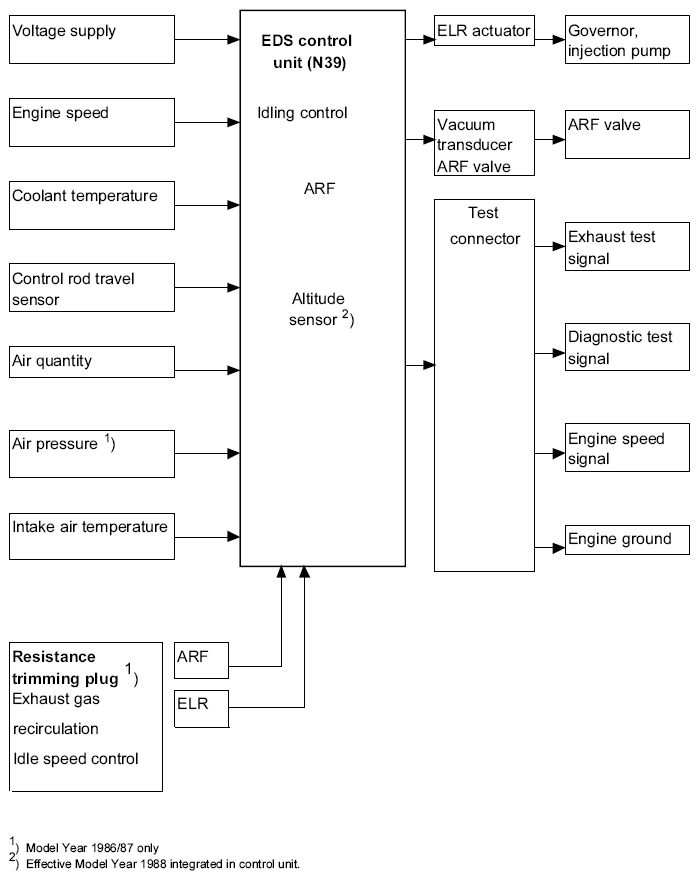

- d) Influencing variables of electronic diesel system (EDS) Engines 602.96 and 603.96 up to Model Year 1991

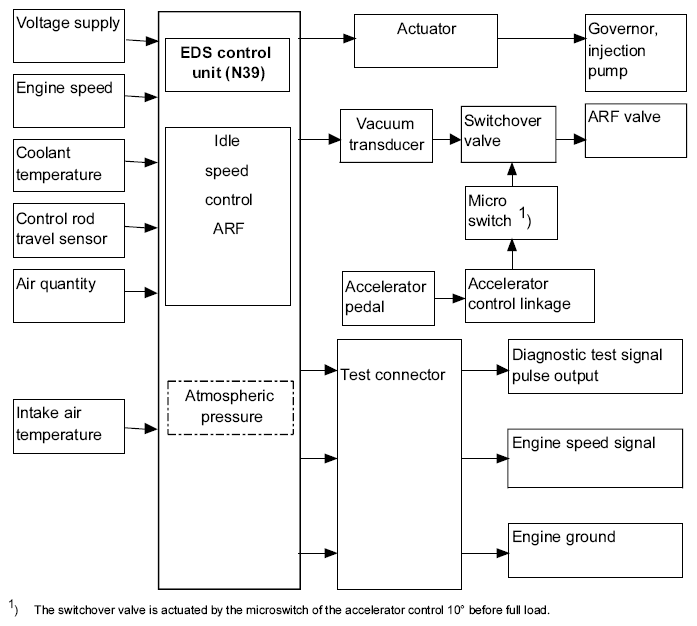

Engine 602.96
Model Year 1991

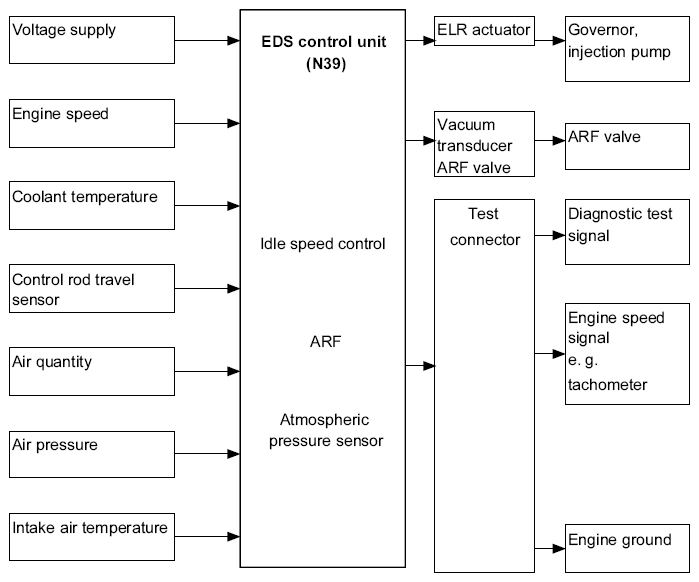

Model Years 1990, 1991
* Pressure upstream of inlet valves

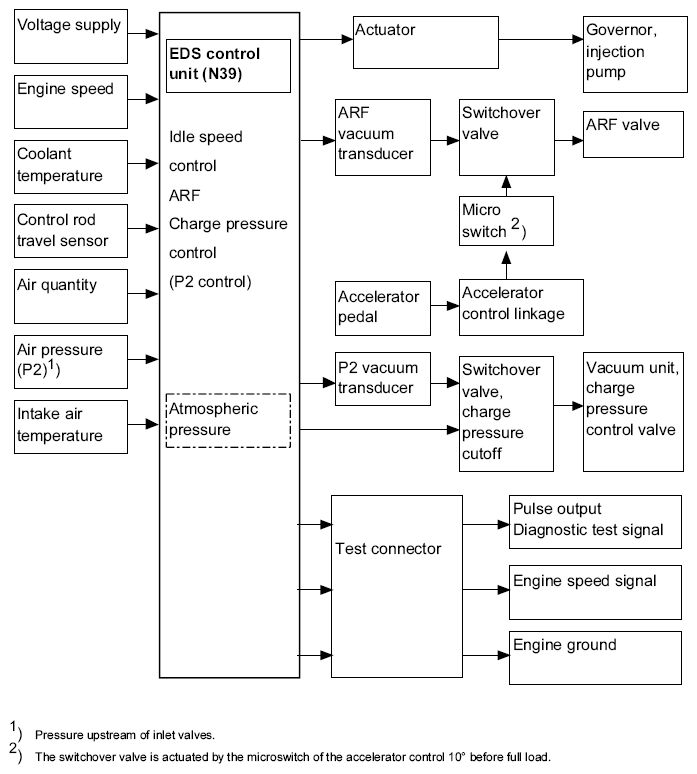

Engine 602.96
Basic Version Code 62/0 as of 06/91
as of Model Year 1992

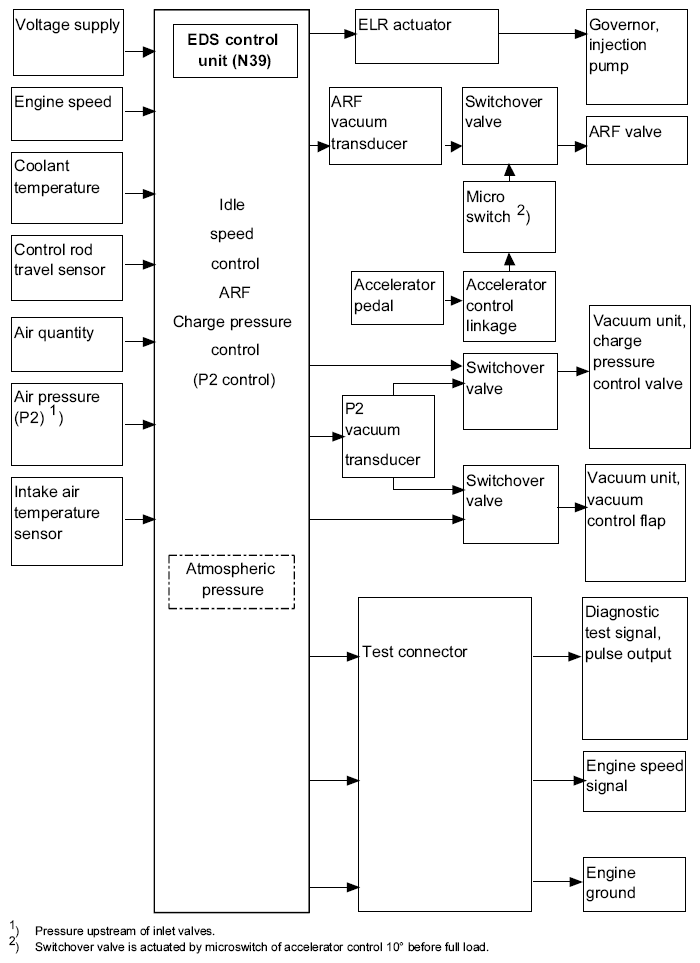

Engine 603.96
Basic Version Code 62/0 as of 06/91
as of Model Year 1992

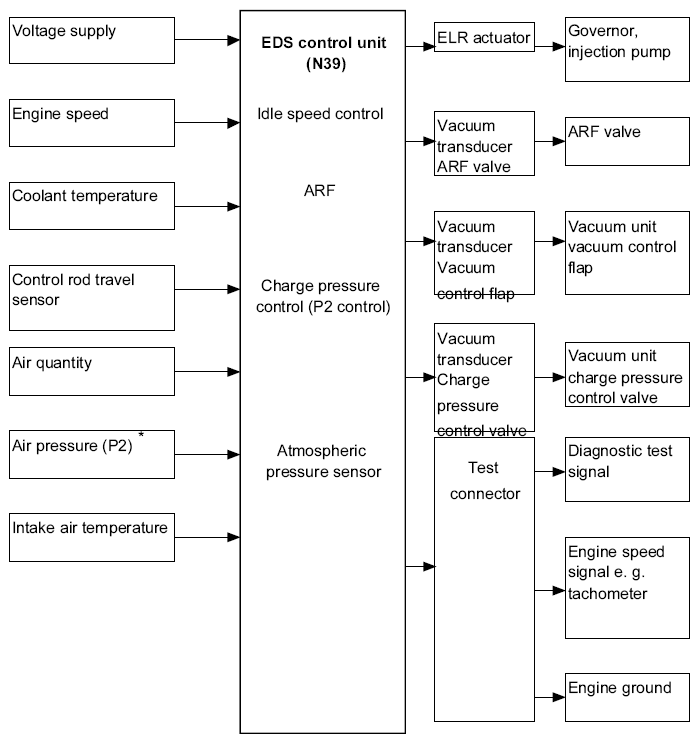

Engine 603.970
Model Year 1990 only
Engine 603.971
Base version Code 62/0, as of model year 1992
