Function diagram - RA0704FLH0010X (07.4-0010)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 104

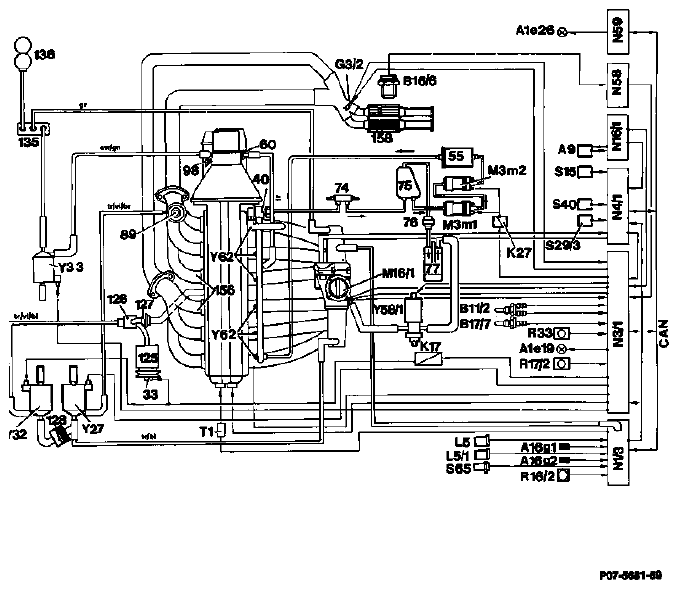

Fig 1: Electronically Controlled Gasoline Injection System (LH) Function Diagram - Engine 104
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Basic version, and

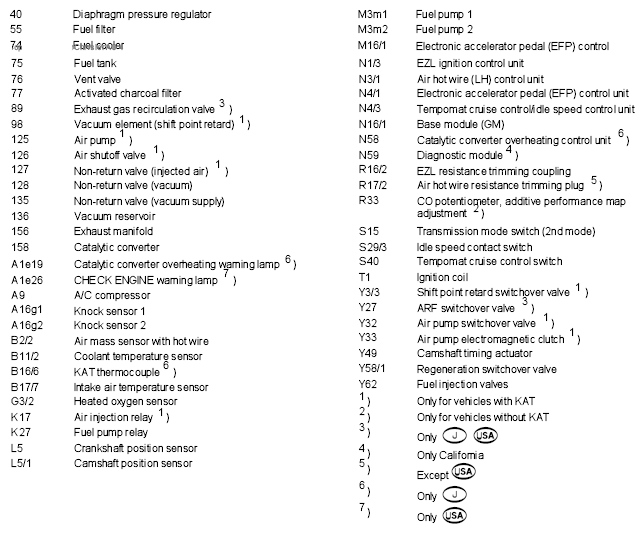

Fig 2: Engine 104 Components Reference Table
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Engine 119

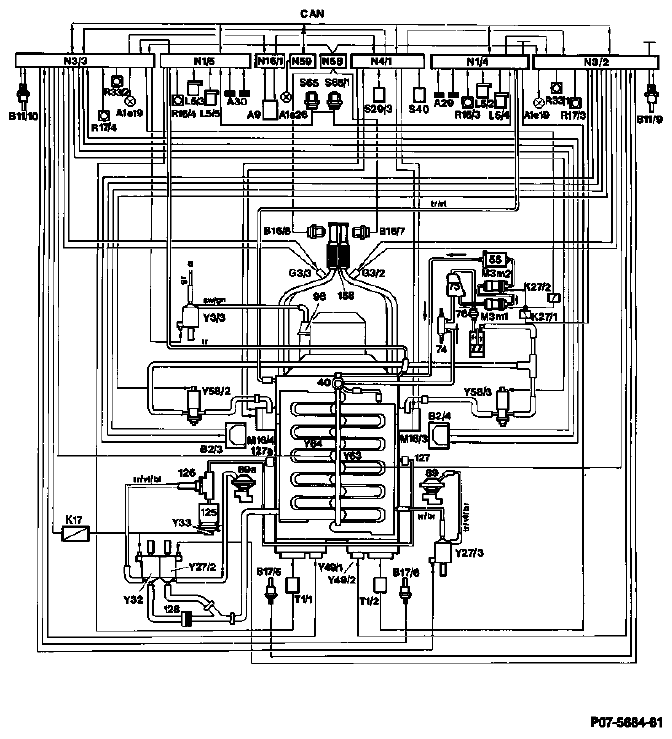

Fig 3: Electronically Controlled Gasoline Injection System (LH) Function Diagram - Engine 119
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Basic version, and

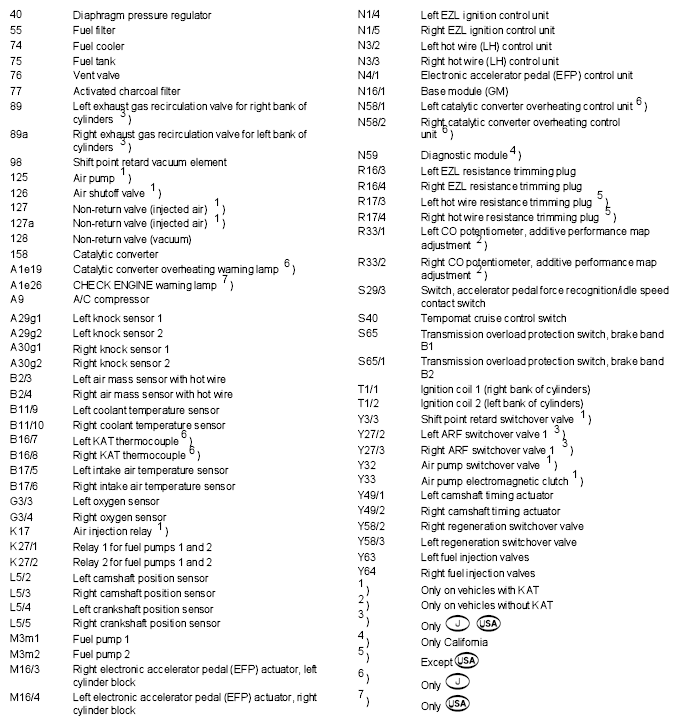

Fig 4: Engine 119 Components Reference Table (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Engine 120

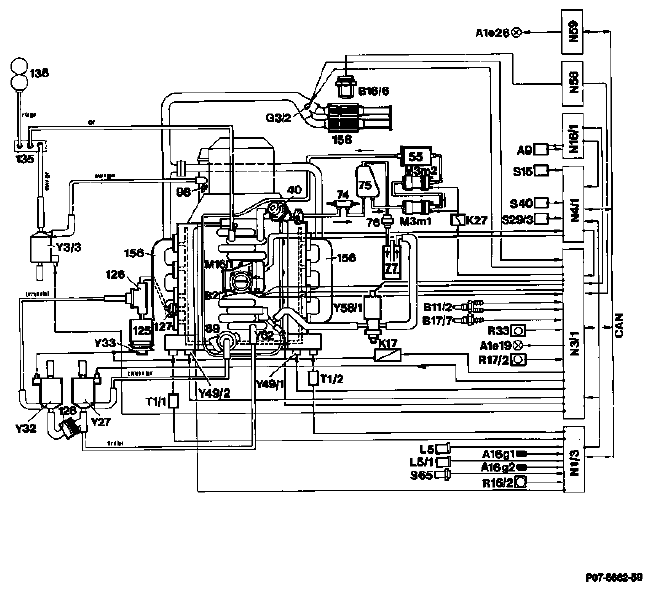

Fig 5: Electronically Controlled Gasoline Injection System (LH) Function Diagram - Engine 120
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Basic version, and

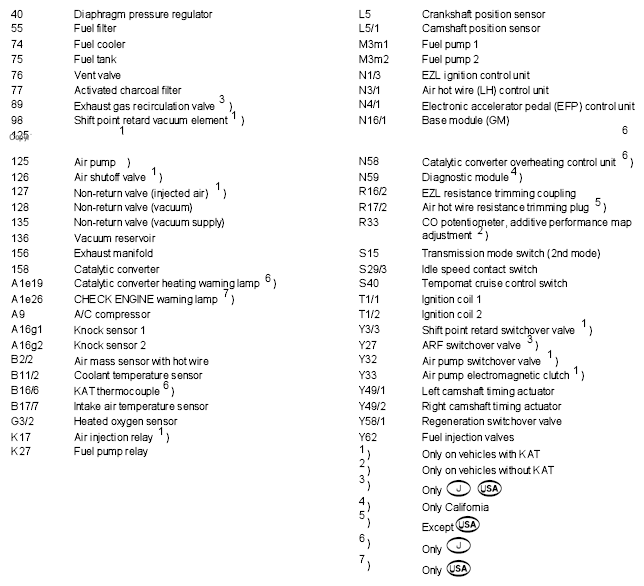

Fig 6: Engine 120 Components Reference Table
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
