Checking start of delivery - wh0760pkw0002x(0760)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601, 602, 603 with ERG A. With position sensor (governor impulse method), B. With digital tester (governor impulse method)

Before performing work with engine running, apply parking brake.

On vehicles with automatic transmission shift transmission to position "P".

Checking start of delivery with position sensor (governor impulse method)

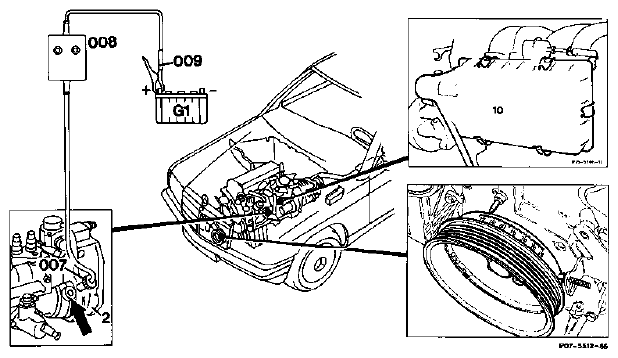

Fig 1: Checking Start Of Delivery With Position Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Air cleaner cover (10)	remove, install (except engine 602.96, 603.96/97).
Plug (arrow)	on governor housing (2), screw out, screw in, tightening torque 30-35 Nm (guide value).
Position sensor (007)	screw out, screw in.
Battery terminal (009)	Position sensor 617 589 08 21 00 connect to battery +, disconnect.
Crankshaft	turn by hand until lamps A and B on tester (008) come on simultaneously.
RI value (indirect start of delivery)	Socket wrench, 27 mm, 001 589 65 09 00 read off on degree disc, see table for specified value. If necessary adjust start of delivery as separate order (see 0761).

Checking start of delivery with digital tester (governor impulse method)

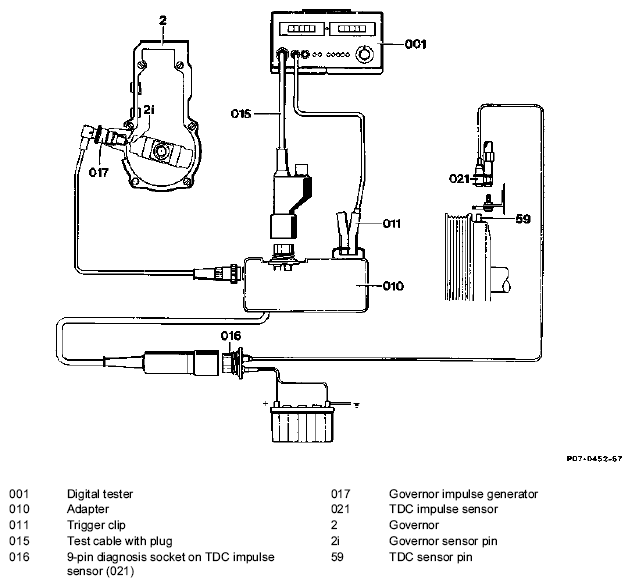

Connection schematic for test equipment with adapter

Fig 2: Start Of Delivery With Digital Tester (With Adapter) Connection Schematic

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

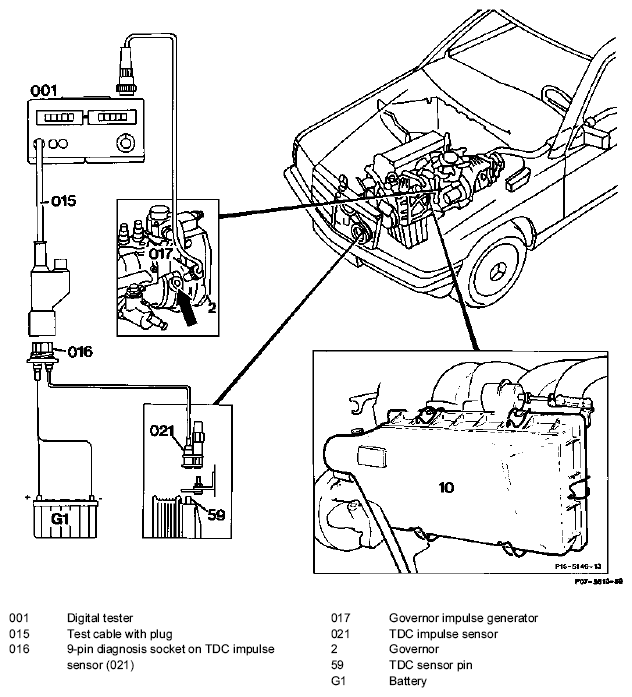

Connection schematic for test equipment without adapter

Fig 3: Start Of Delivery With Digital Tester (Without Adapter) Connection Schematic

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Air cleaner cover (10)	remove, install (except engine 602.96, 603.96/97).
Plug (arrow)	on governor housing (2), screw out, screw in, tightening torque 30-35 Nm (guide value).
Test equipment	connect according to connection schematic, disconnect: TDC sensor 601 589 04 21 00 or 603 589 00 21 00 RI sensor 617 589 10 21 00 RI adapter 617 589 09 21 00
RI value (indirect start of delivery)	read off on digital tester (001) at idle speed, see table for specified value. If necessary adjust start of delivery as special order (see 0761).
Leakage	check with engine running.

BASIC VERSION WITH EGR EXCEPT

RI TEST VALUE

Engine	Production breakpoint	RI value (indirect start of delivery ATDC)
601, 602, 603	as of 1990	14°+0.5°

NATIONAL VERSION

RI TEST VALUE

Engine	Model year	RI value (indirect start of delivery ATDC)
601, 602, 603	1984-1987	15°+0.5°
601, 602, 603	as of 1990	14°+0.5°

Special tools

Fig 4: Identifying Special Tools (617 589 08 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Special Tools 03 07 32 (001 589 65 09 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Special Tools 07 (601 589 04 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Special Tools 07 (603 589 00 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Identifying Special Tools 07 (617 589 10 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Identifying Special Tools 07 (617 589 09 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TEST EQUIPMENT

For use without adapter
Designation	e.g. company, order no.
Digital testers	Bosch, ETD 019.002 Sun, DIT 9100 AVL, Diesel-Tester 873
For use with adapter
Digital tester	Bosch, MOT 104/202
