Motor electronics (ME-SFI) fuel injection and ignition system position of components - GF07.61-P-0001-01D

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 with ENGINE 104

On engine

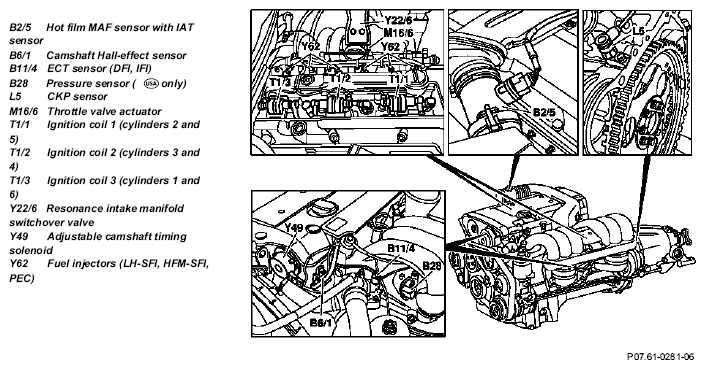

Fig 1: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components

G05436787

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

On engine

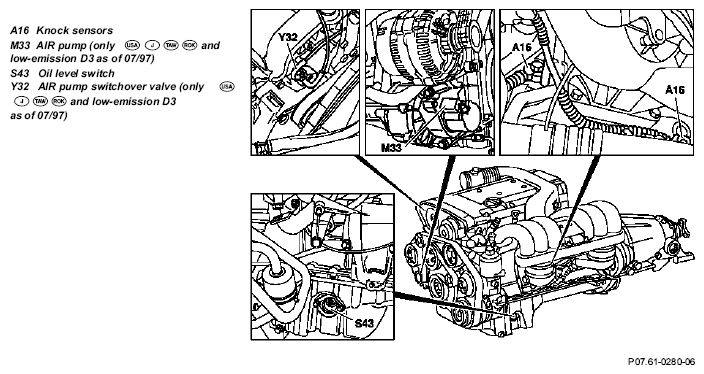

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components

G05436788

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment Model 140

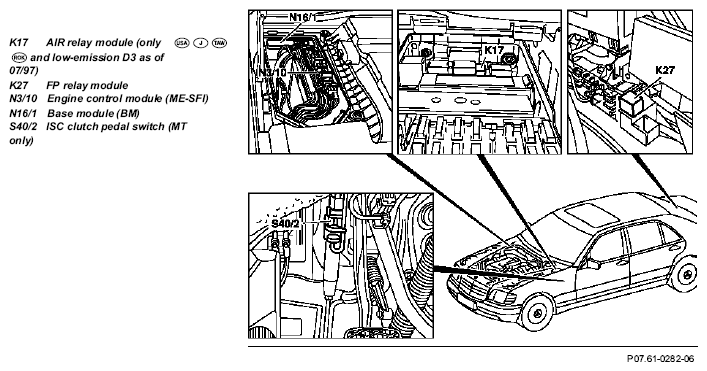

Fig 3: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Engine Compartment Model 140

G05436789

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment Model 140

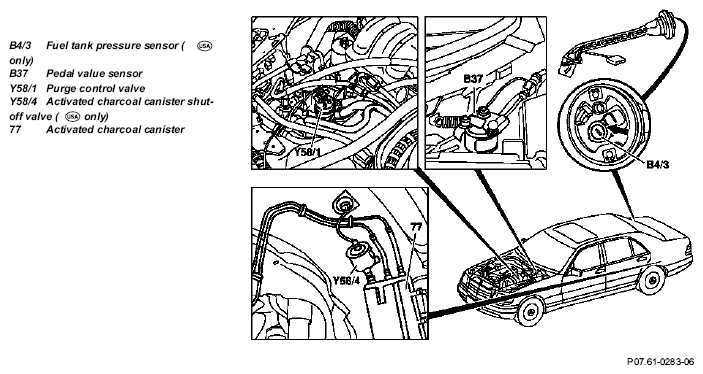

Fig 4: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Engine Compartment Model 140

G05436790

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment Model 140

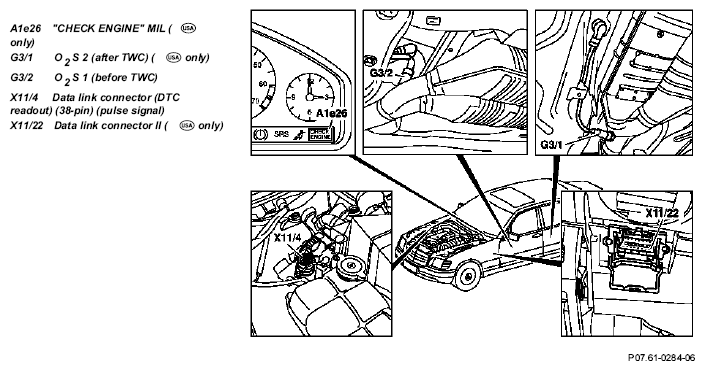

Fig 5: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Engine Compartment Model 140

G05436791

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment Model 140

Fig 6: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components - Engine Compartment Model 140

G05436792

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
