Motor electronics (ME-SFI ) fuel injection and ignition system position of components - GF07.61-P-0001-01CB

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

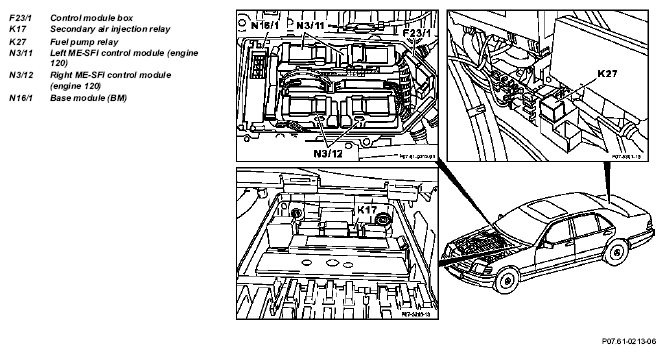

Fig 1: Identifying Fuel Injection And Ignition System Arrangement Of Components - Model 140 (1 Of 4)

G04736640

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

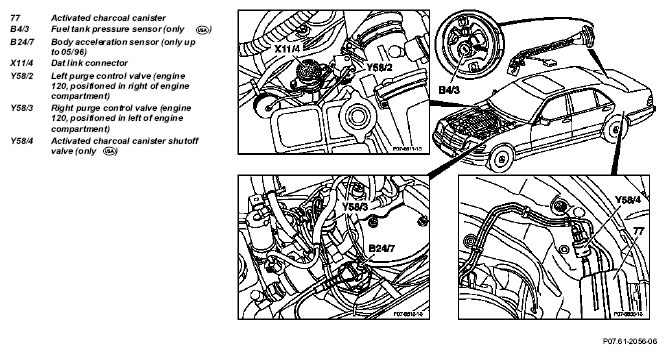

Fig 2: Identifying Fuel Injection And Ignition System Arrangement Of Components - Model 140 (2 Of 4)

G04736641

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

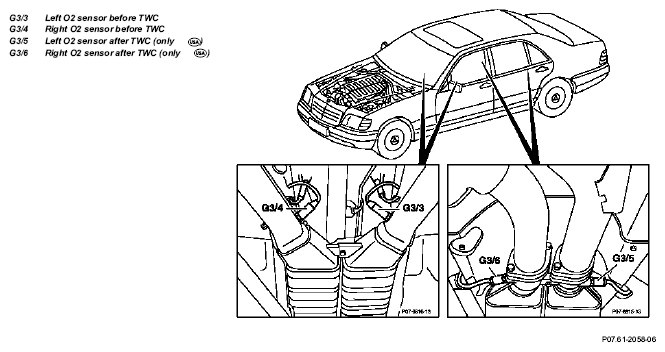

Fig 3: Identifying Fuel Injection And Ignition System Arrangement Of Components - Model 140 (3 Of 4)

G04736642

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

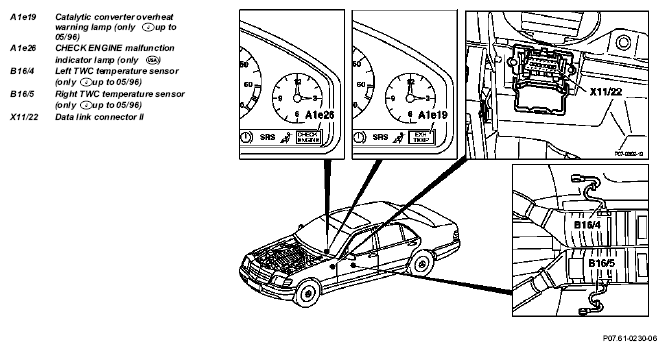

Fig 4: Identifying Fuel Injection And Ignition System Arrangement Of Components - Model 140 (4 Of 4)

G04736643

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 140 with engine 120

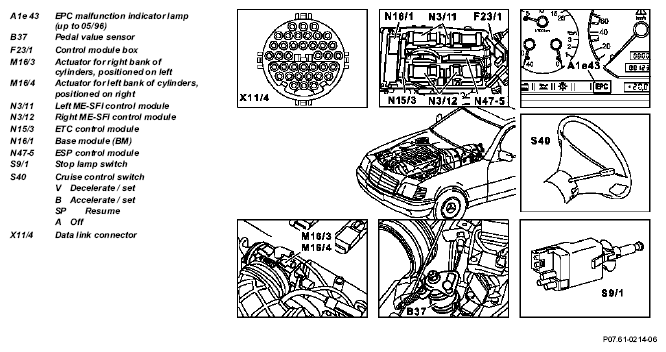

Fig 5: Identifying Fuel Injection And Ignition System Arrangement Of Components - Model 140 With Engine 120

G04736644

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 104, 119

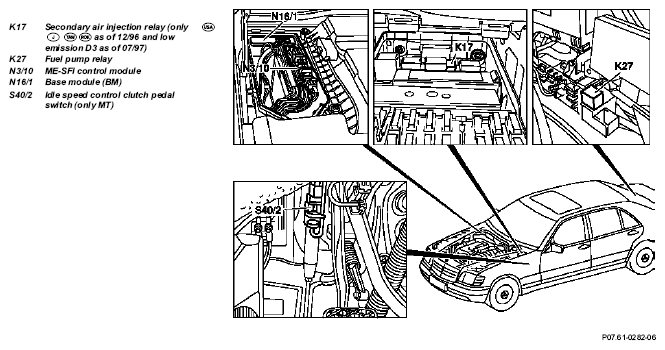

Fig 6: Identifying Fuel Injection And Ignition System Arrangement Of Components - Engine 104, 119 (1 Of 3)

G04736645

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Fuel Injection And Ignition System Arrangement Of Components - Engine 104, 119 (2 Of 3)

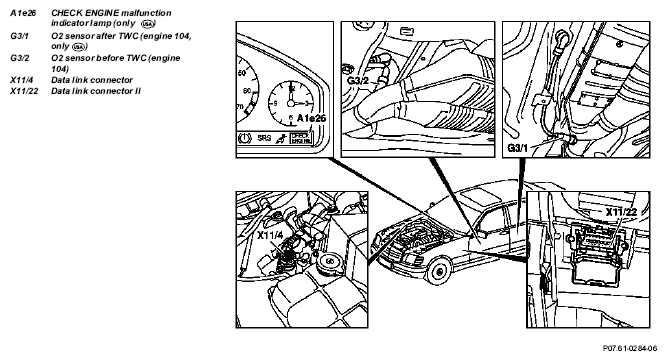

G04736646

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Identifying Fuel Injection And Ignition System Arrangement Of Components - Engine 104, 119 (3 Of 3)

G04736647

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
