Remove/install floor selector - AR27.60-P-0900B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSIONS 722.6

in model 129,140,

163 up to 31.8.99,

170 up to 30.11.99,

202, 208, 210 up to 30.6.99

Shown on floor shift with W/S switch

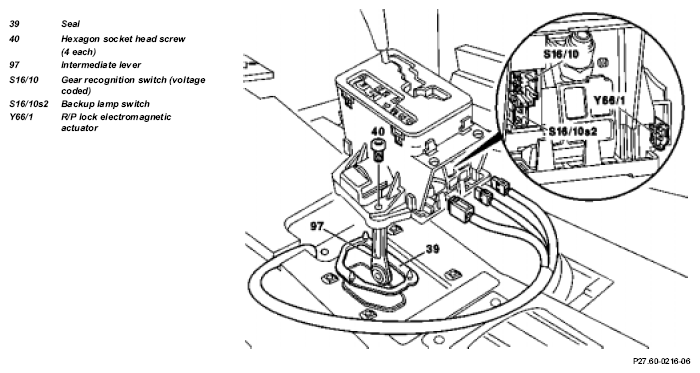

Fig 1: Identifying Floor Selector Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Disconnect shift rod from intermediate lever (97)	Remove retaining clip. If adjusting: ↓
1	Disconnect shift rod from intermediate lever (97)	Adjust shift rod.	AR27.60-P-0980B
2	Remove center console	Model 140, 129	ra68001400200x
		AR68.20-P-2010G	Model 170
		Model 202	AR68.20-P-2000E
		Model 208	AR68.20-P-2000K
		Model 210	AR68.20-P-2000F
		Model Series 163	AR68.20-P-2000GH
3.1	Remove insulation mat	Model Series 163
4	Unscrew hexagon socket bolts (40)		*BA27.60-P-1001-02A
5	Unplug connectors	From gear identification switch (S16/10), reverse lamp switch (S16/10s2) and R/P lock electromagnetic actuator (Y66/1).
6	Remove floor shift	Disassemble and assemble floor shift according to condition.	AR27.60-P-0920B
6	Remove floor shift	Installation: Check gasket (39) for correct installation position and condition, replace if necessary.
7	Install in the reverse order	After installing the floor shift, read out and erase fault code using HHT, refer to DM Chassis Volume 1 - Index 0.

Tightening torques for floor shift

Number	Designation		Transmission 722.6
BA27.60-P-1001-02A	Bolt, floor selector to body	Nm	6
