Dismantling and assembling front transmission cover with primary pump - AR27.30-P-0660A: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.5

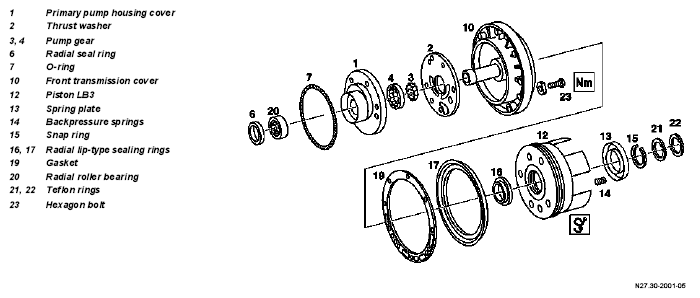

Fig 1: Exploded View Of Front Transmission Cover With Primary Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Dismantling, assembling
1	Remove piston LB3 (12)		AR27.30-P-0660-01A
		Sleeve	Fig 2
		Assembly device	Figure
2	Unscrew hexagon bolts (23) and remove primary pump housing (1) with intermediate plate (2) from front cover (10)		*BA27.30-P-1002-01A
3	Disassemble primary pump	If the radial roller bearing (20) is damaged, replace the primary pump.	AR27.30-P-0660-02A
4	Assemble in reverse sequence

FRONT TRANSMISSION COVER

Number	Designation		Transmission 722.5
BA27.30-P-1002-01A	Bolt, primary pump in front cover	Nm	20

Fig 2: Identifying Sleeve (126 589 04 14 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Assembly Device (201 589 12 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
