Adjusting and checking parking lock - RA2703722D740X(27-740)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

For parking lock interlock on model 210, see "Automatic transmission 722.4" microfilm .

D. Model 140

The arrangement of cables and locking levers has been modified.

The locking lever for the brake pedal has been moved towards the front of the vehicle and the locking lever for the steering locking has been moved towards the rear.

The cables are each fastened individually with pipe clamps.

Installation note

Install shift lock cables free from tension and without kinks.

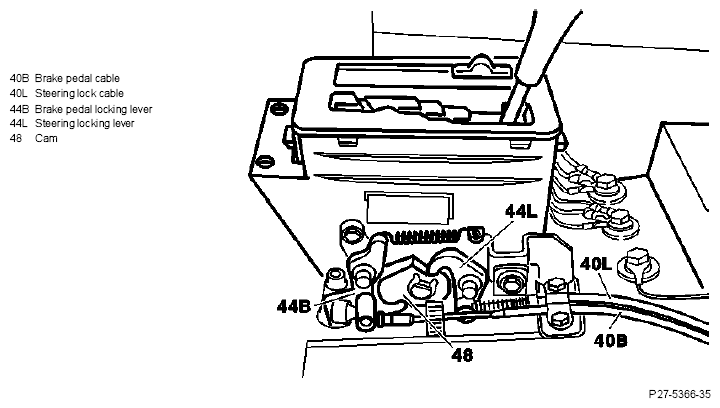

Fig 1: Checking Parking Lock - Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Adjusting cable after replacement

Move selector lever to position "P" and turn ignition key to position "0".

Release pipe clamp for steering lock cable (40L) and pull steering lock cable in direction of arrow until locking lever for steering lock (44L) contacts the cam (48). Tighten pipe clamp to 5 Nm.

Release pipe clamp for brake pedal cable (40B) and pull brake pedal cable in direction of arrow until brake pedal locking lever (44B) contacts the cam (48). Tighten pipe clamp to 5 Nm.

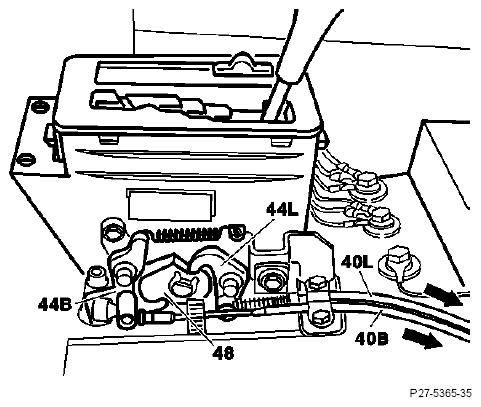

Fig 2: Identifying Brake Pedal Cable

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Adjusting cable without replacement

It is not necessary to remove the center console. Remove and install shift gate cover. Carefully press out air duct using a large screwdriver or plastic wedge.

NOTE: Do not damage the duct. Move selector lever to position "P" and ignition key to position "0".

Release pipe clamp for steering lock cable (40L) and slowly pull cable in direction of arrow using pliers until slight resistance is detectable.

Tighten pipe clamp to 5 Nm.

Release pipe clamp for brake pedal cable (44B) and slowly pull cable in direction of arrow using pliers until slight resistance is detectable.

Tighten pipe clamp to 5 Nm.
