Installation of a pressure feed valve - BT27.35-P-0002-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.6## # as of 0027083

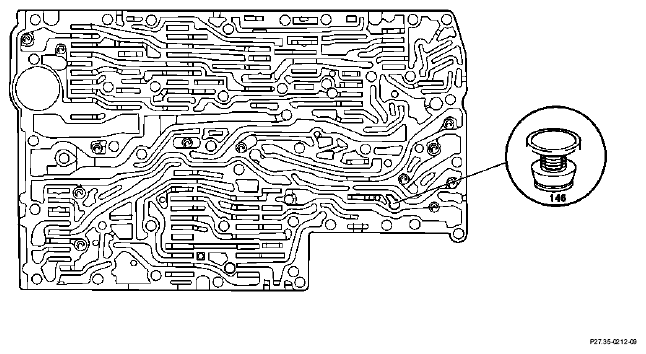

Fig 1: Identifying Pressure Feed Valve - Transmission 722.6## # As Of 0027083
G04633132Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
PRODUCTION BREAKPOINT DATA/MODIFICATIONS/NEW FEATURES

Transmission/steering gear Transmission ident. end no. as of Type of and reason for modification
722.6 0027083

A pressure feed valve (146) has been installed in the 2-3 shift group to prevent harsh 3-2 downshifts and roll-out shifts.
