Removing and installing ignition coils - AR15.12-P-2003F
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 120.980/981
Model 129
Model 140
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Hazard from contact with parts conducting high voltages | Do not touch parts conducting high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out any work on the ignition system. | AS15.10-Z-0001-01A | |
| Notes on avoiding damage to the ignition system | Engine 104, 111, 112, 113, 119, 120 with MESFI fuel injection and ignition system | AH15.10-P-0002-01D | |
| Engine 104, 119, 120 with LH-SFI fuel injection system | AH15.10-P-0002-01F | ||
| Cover above right or left headlight | Model 140 Remove, install |
||

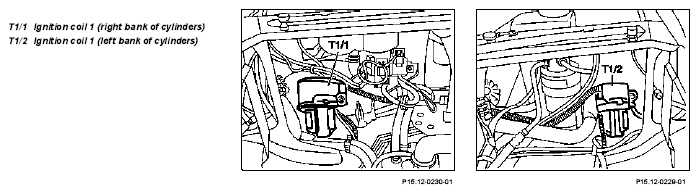

| T1/1, T1/2 | Ignition coils, polarity (arrows) | Terminal 1: M5 thread Terminal 15: M6 thread |
