Removing and installing crankshaft position sensor - AR15.12-P-2133G

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 104.941 /942 /943 /944 /991 /992 /994, 111.920 /940 /941 /942 /944 /960 /961 /975

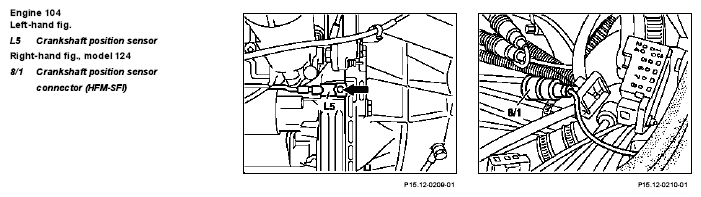

Fig 1: Identifying Crankshaft Position Sensor Components (Engine 104)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

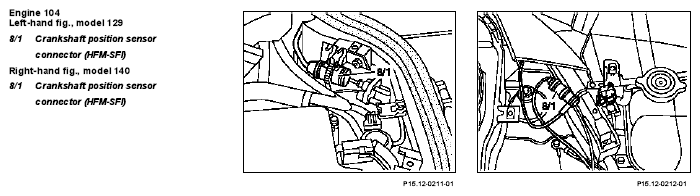

Fig 2: Identifying Crankshaft Position Sensor Components (Engine 104)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

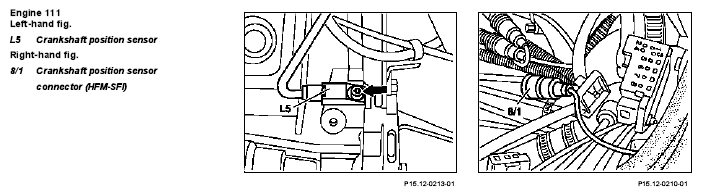

Fig 3: Identifying Crankshaft Position Sensor Components (Engine 111)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Crankshaft Position Sensor Components (Engine 111)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig. item, etc.	Work instructions
	Remove starter, install	Engine 104 in Model 129	AR15.30-P-7100C
		Engine 104, 111 in model 202, 208	AR15.30-P-7100EA
		Engine 104, 111 in model 210	AR15.30-P-7100F
	Remove cruise control actuator, install	Engine 111 Refer to repair instructions cruise control systems Op. no. 30-541
	Windshield washer reservoir	Engine 111 PEC Detach, place to the side
8/1, 8/2	Separate plug connection	or socket Model 124, 129, 202 on right in component compartment behind battery Model 140 on right in engine compartment
