Removing and installing generator - ra150c1405032x(5032)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Electrical System Engine 120
Operation no. of operation texts and work units or standard texts and flat rates:
C. Engine 120
Preliminary work:
Poly V-belt slackened (13-3420) .
Engine compartment panels removed (61-0105).
Front torsion bar unscrewed at side member (32-300).

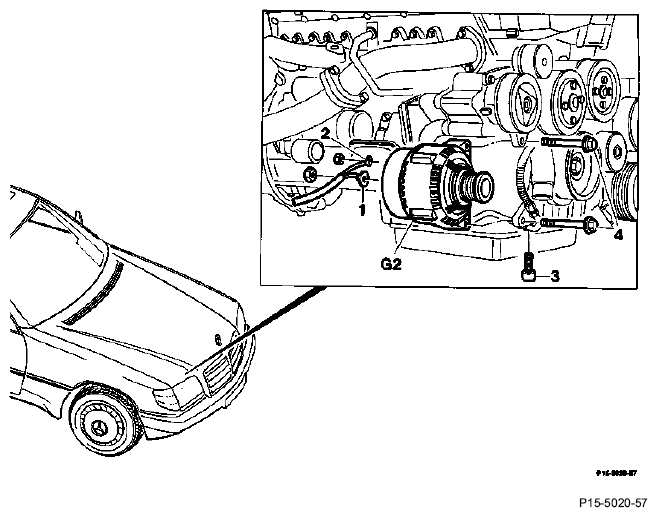

| Ground cable at battery | disconnect, connect. |
| Electric wiring (1 and 2) at generator (G2) | disconnect, connect. |
| Screw (3) of automatic transmission oil line | unscrew, screw in. |
| Bolts (4) | unscrew, screw in. |
| Generator (G2) | remove downward, insert from below. |
