Removing and installing generator - ra150b1405032x(5032)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Electrical System I Engine 119
Operation no. of operation texts and work units or standard texts and flat rates:
B. Engine 119
Preliminary work:
Viscous fan coupling removed (20-3120) .
Poly V-belt slackened (13-3420) .
Engine compartment panels removed (61-0105).
Cross member below radiator removed.
Fan cowl removed.

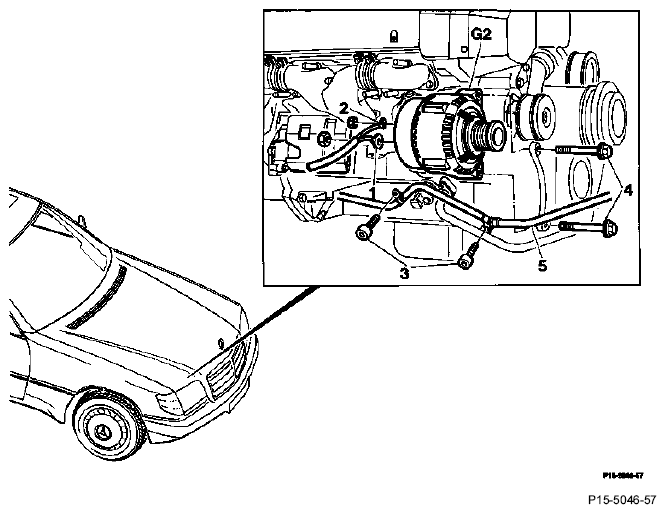

| Ground cable at battery | disconnect, connect. |
| Electric wiring (1 and 2) at generator (G2) | disconnect, connect. |
| Screws (3) | unscrew, screw in. |
| Bolts (4) | unscrew |
| Generator (G2) | remove upwards, press line (5) slightly to side if necessary, insert from above. |
