Checking dipstick and guide tube - RA18001043500X(18-3500)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

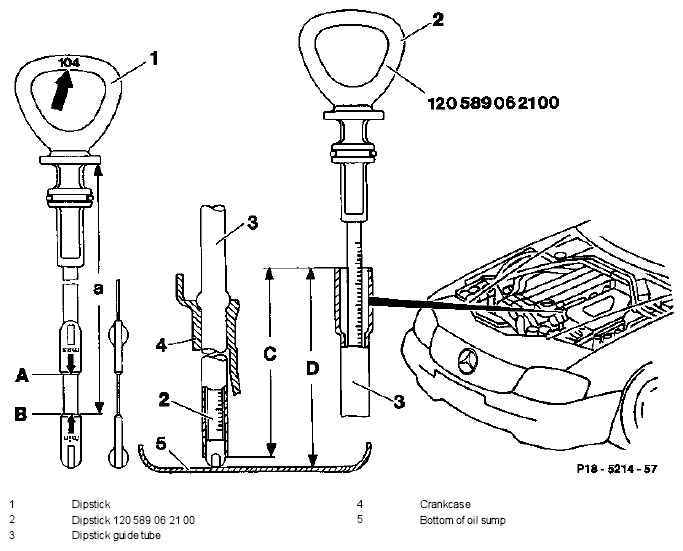

| Dipstick (1) | remove. |
| Code number (arrow) on dipstick (1) | check against table. |
| Dipstick (2) 120 589 06 21 00 | insert with millimeter scale facing to front as far as flow of oil sump (5). |
| Size (D) | check against table. |
DIPSTICK AND GUIDE TUBE
| Engine | Model | A-B | a | C | D | Code no. |
|---|---|---|---|---|---|---|
| 104.941 | 202.028 | 15 | 516 | 600 | 605 | 104 07 |
| 104.942 | 124.0 | 15 | 516 | 600 | 605 | 104 07 |
| 104.943 | 129.058 | 15 | 516 | 600 | 605 | 104 07 |
| 104.944 | 140.028 | 20 | 552 | 645 | 649 | 603 22 |
| 104.945 | 210.053 | 15 | 516 | 600 | 605 | 104 07 |
| 104.980 | 124.0 | 15 | 516 | 602 | 605 | 104 07 |
| 104.981 | 129.061 | 15 | 516 | 602 | 605 | 104 07 |
| 104.990 | 140.03 | 20 | 552 | 645 | 649 | 603 22 |
| 104.991 | 129.063 | 15 | 516 | 600 | 605 | 104 07 |
| 104.992 | 124 | 15 | 516 | 600 | 605 | 104 07 |
| 104.994 | 140.03 | 20 | 552 | 645 | 649 | 603 22 |
| 104.995 | 210.055 | 15 | 516 | 600 | 605 | 104 07 |
| 104.996 | 463.2 | 20 | 552 | 665 | 669 | 603 22 |
