Replacing threaded bush in front of camshaft - RA05001042218X(05-2218)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Camshaft removed (05-2200)
Operation no. of operation texts and work units or standard texts and flat rates:
Exhaust camshaft

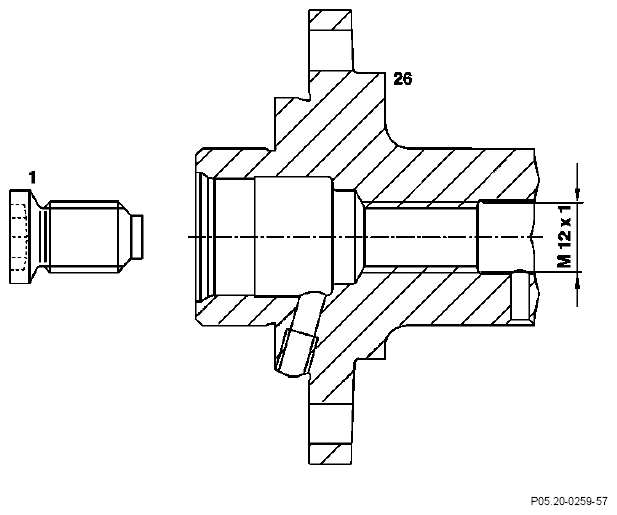

| Threaded bush (1) | unscrew (torx). |
| Hollow-drilled camshaft (26) | clean. |
| Thread at front of camshaft (26) | clean, remove grease. |
| Threaded bush (1) (microencapsulated) part no. 103 997 00 15 | replace, tighten (45 Nm). |
Special tool
