Tightening bolts of propeller shaft intermediate bearing - AR41.10-P-0050-13DA
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
| Number | Designation | Model 140 | ||
|---|---|---|---|---|
| BA41.40-P-1001-01A | Bolt, propeller shaft intermediate bearing to frame floor | Bolt with washer | Nm | 25 |
| Bolt with collar and centering tip | Nm | 30 | ||
| Bolt with collar without centering tip | Nm | - | ||
Tighten bolts only after fastening the flexible disks to transmission and rear axle.

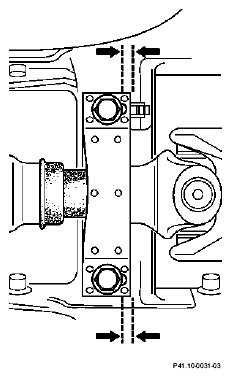

Before tightening the hexagon bolts, and with no load on the rear axle, push the propeller shaft intermediate bearing from its present installed position 5 mm toward the front
(arrows) and then tighten the hexagon bolts.
