Removing and installing throttle control cable - AR30.10-P-3400EA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 119.982 in MODEL 129.067

ENGINE 120.983 in MODEL 129.076

ENGINE 119.981 in MODEL 140.042 /043 /063

ENGINE 120.982 in MODEL 140.056 /057 /076

ENGINE 606.961 in MODEL 140.135

ENGINE 111.943 in MODEL 170.445

ENGINE 111.973 in MODEL 170.447

ENGINE 111.944 as of 1.9.96 in MODEL 202.025 /082

ENGINE 111.975 as of 1.9.96 in MODEL 202.024/085

ENGINE 112.910 in MODEL 202.026 /086

ENGINE 112.920 in MODEL 202.029 /089

ENGINE 111.944 in MODEL 208.345

ENGINE 111.975 in MODEL 208.347

ENGINE 112.940 in MODEL 208.365 /465

ENGINE 112.921 in MODEL 210.063 /263 /081 /281

ENGINE 112.941 in MODEL 210.065 /082 /265 /282

ENGINE 113.940 in MODEL 210.070 /270

ENGINE 119.985 in MODEL 210.072 /272

ENGINE 111.947 in MODEL 210.045 /245

ENGINE 112.923 in MODEL 129.059

ENGINE 112.943 in MODEL 129.064

ENGINE 113.961 in MODEL 129.068

ENGINE 113.980 in MODEL 210.074/274

ENGINE 113.944 in MODEL 202.033/093

ENGINE 113.943 in MODEL 208.370 /470

ENGINE 113.984 in MODEL 208.374

Shown on model 140

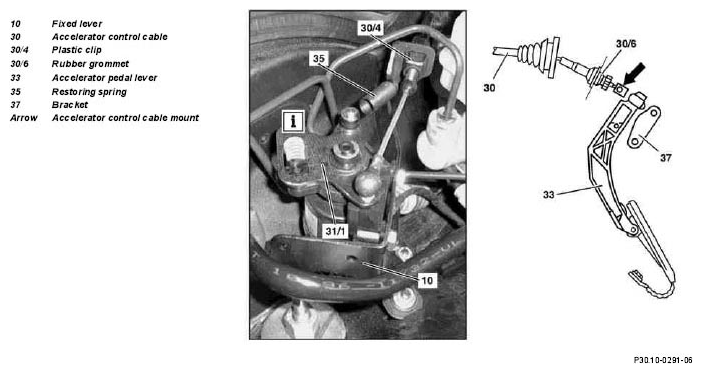

Fig 1: Identifying Throttle Control Cable Components - Shown On Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 210

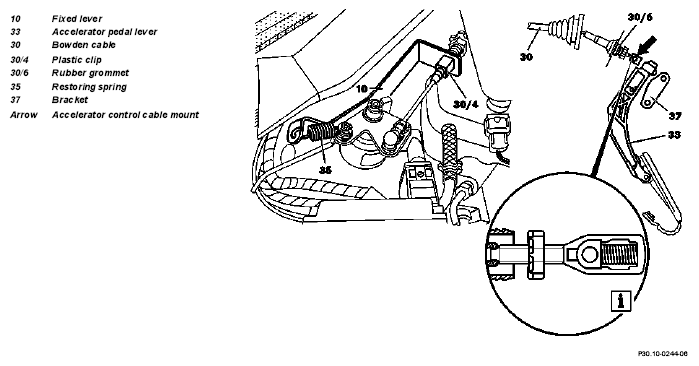

Fig 2: Identifying Throttle Control Cable Components - Shown On Model 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Disconnect accelerator control cable (30) at ball head
2	Compress plastic clip (30/4) and pull out of fixed lever (10) together with accelerator control cable
3	Remove footwell trim
4.1	Release accelerator control cable mount (arrow) at accelerator pedal lever (33)	On engine 111.943/944/973/975, 112.921/941, 119.981/982/985, 120.982/983, 606.961: ↓ Remove bracket (37) for this purpose.
5	Push accelerator control cable (30) to the outside from inside the car	Do not press out rubber grommet (30/6).
6	Take out accelerator control cable (30) completely, working from the engine compartment	Potentiometer relay lever (31/1) with spring. At WOT stop the accelerator pedal lever travel is enlarged by the spring being compressed. This makes it possible to operate the kickdown switch.
7	Install in the reverse order
8	Check accelerator control, adjust	Engine 111.944/975 up to 31.08.96 Engine 111.943/973/947 Engine 111.944/975 as of 01.09.96 Engine 112.910/920/921/940/941/943: ↓	AR30.10-P-1010D
		manual transmission	AR30.10-P-1010C
		automatic transmission	AR30.10-P-1010CA
		Engine 113.943/944/984: ↓
		automatic transmission Engine 112.923: ↓	AR30.10-P-1010CA
		manual transmission Engine 112.923/943 Engine 113.940/961/980: ↓	AR30.10-P-1010C
		automatic transmission	AR30.10-P-1010BA
		Engine 119.981/982/985	AR30.10-P-1010EC
		Engine 120.982/983	AR30.10-P-1010FA
		Engine 606.961	AR30.10-P-1010HC
