Removing and installing throttle control cable - AR30.10-P-3400E
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 119.97
| Removal, installation | |||

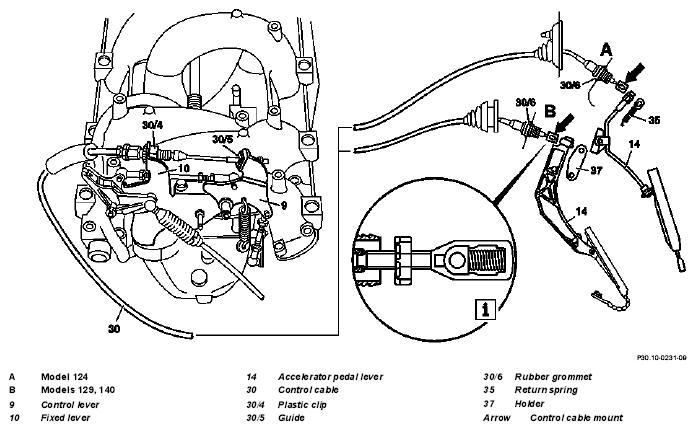

| 1 | Remove guide (30/5) | First pull plastic nipple out of guide, do not damage |
|
| 2 | Unhook control cable (30) from control lever (9) | ||
| 3 | Press plastic clip (30/4) together and remove from fixed lever (10) together with control cable | ||
| 4 | Remove footwell paneling | ||
| 5 | Unhook control cable mount (arrow) from accelerator pedal lever (14) | Model 124 Unhook return spring (35), hook in Models 129, 140 Remove holder (37), install |
|
| 6 | Push control cable (30) toward exterior from passenger compartment | ||
| 7 | Completely remove control cable (30) from engine compartment | ||
| 8 | Reinstall in opposite order | ||
| 9 | Lubricate control cable (30) between guide (30/5) and end element with corrosion protection grease | *BR00.45-Z-1006-06A | |
| 10 | Check control, adjust | With ASR, code 471a | AR30.10-P-1010EA |
| Without ASR, code 471a | AR30.10-P-1010EB |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1006-06A | Grease | A 001 989 37 51 10 |
