Removal, adjustment and installation of Bowden cable - ra30006023402x(3402)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603.96/97 TURBO (Model 463.3 : for deviations see introductory notes)
Preceding work:
Operation no. of operation texts and work units or standard texts and flat rates: 30-3402

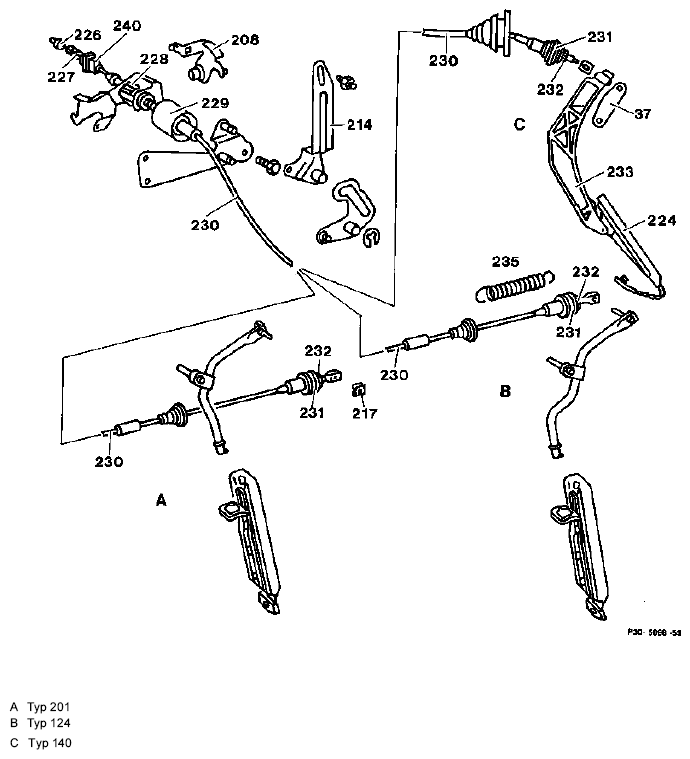

| Bowden cable (230) | detach at accelerator control lever (208). Remove, install guide piece (240) on accelerator control lever for this step. |
| Plastic clip (228) | compress and remove, install Bowden cable (230). |
| Cover below instrument panel | (Model 140) remove, install. |
| Footwell covering | (Models 124, 201) remove, install. |
| Locking element (217) | (Model 201) remove, fit on again. |
| Spring (235) | (Models 124, 201) remove, install. |
| Bowden cable mount | (Model 140) at accelerator pedal lever (233), detach, attach. |
| Vacuum lines for key-operated engine stop | withdraw from rubber grommet, insert. |
| Bowden cable (230) | press outwards, ensuring that the rubber grommet (231) is not pressed out. |
| Adjusting screw (229) | adjust full throttle stop. |
| Adjusting nut (232) | adjust idle stop. |
| Rubber grommet (231) | ensure correct position. |
| Accelerator control | adjust (30-1010 ). |
NOTE:
Use anti-corrosion grease
Part No. 000 989 87 51 10 when performing assembly work on the accelerator control.
