Removal and installation of Bowden cable - ra30lh1043402x(3402)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Operation No. of operation texts and operation values or standard texts and flat rates -------------------.30-3402

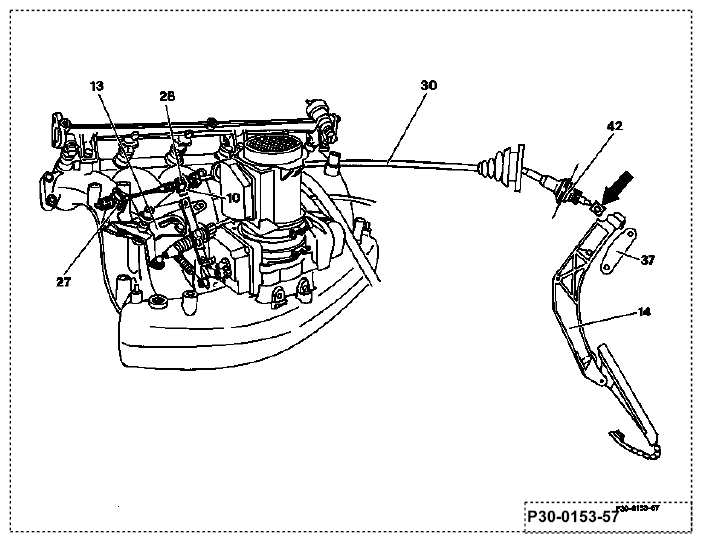

| Guide piece (27) | remove, install.
NOTE:
First of all, remove plastic nipple from guide piece. When installing, ensure that the plastic nipple engages in the guide piece.
|
| Bowden cable (30) | detach from fulcrum lever (13), attach. |
| Plastic clips (28) | compress and with |
| Bowden cable (30) | withdraw from fixed lever (10), insert. |
| Cover below instrument panel | remove, install. |
| Bowden cable mount (arrow) | at accelerator pedal lever (14), detach, attach. For this purpose, remove holder (37), install. |
| Bowden cable (30) | press to the outside from interior of car, insert. Do not press out rubber grommet (42). |
| Bowden cable (30) | remove complete, working from engine compartment, install. |
| Rubber grommet (42) | examine; renew if necessary. |
| Accelerator control | set (30-1010 ). |
