Idle speed control (ISC) arrangement of components - GF30.22-P-0002-01DA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

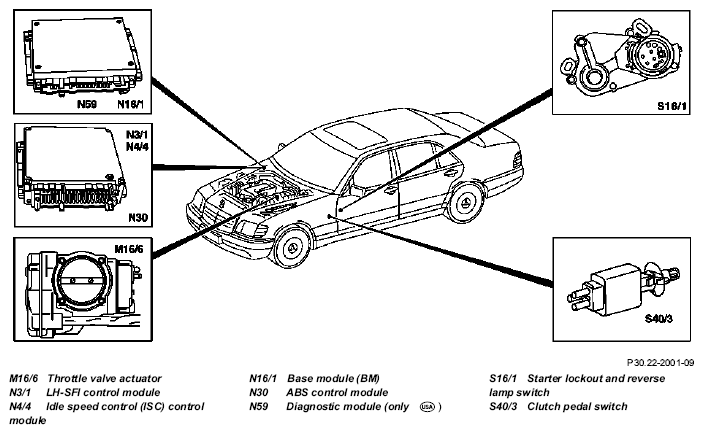

Fig 1: Identifying Idle Speed Control (ISC) Components Location
G05437300Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
