Activated charcoal canister shutoff valve position - GF47.30-P-4033-01A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

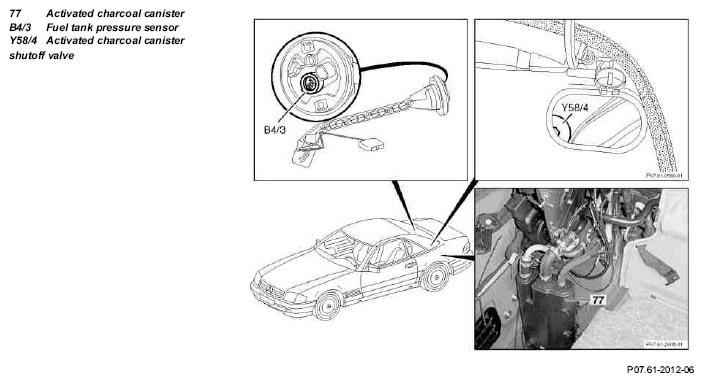

Fig 1: Identifying Activated Charcoal Canister Shutoff Valve And Fuel Tank Pressure Sensor
G05438888Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
