Connection diagram of intake manifold - AR09.20-P-1310-01FA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 120.982/983

Function diagram of secondary air injection and vacuum supply model 129, 140 with engine 120 ME-SFI

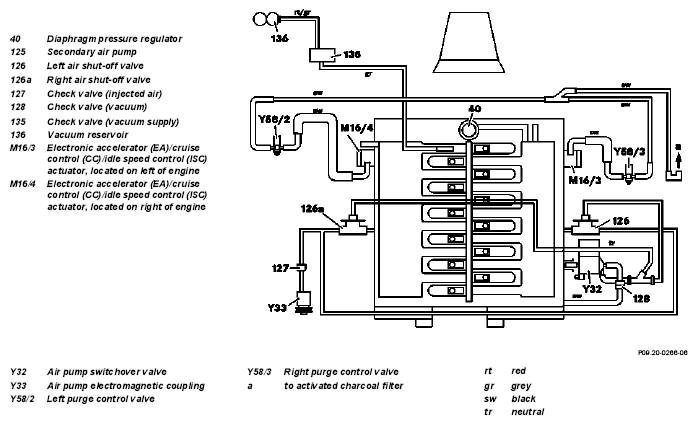

Fig 1: Function Diagram Of Secondary Air Injection And Vacuum Supply - Model 129
G04678458Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function diagram of secondary air injection and vacuum supply model 129, 140 USA ONLYwith engine 120 ME-SFI

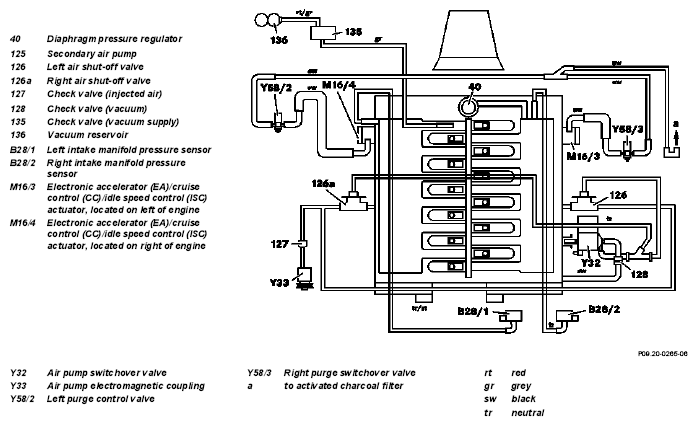

Fig 2: Function Diagram Of Secondary Air Injection And Vacuum Supply Model 129, 140
G04678459Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
