Connecting diagram of intake manifold - AR09.20-P-1310-01DB

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Connecting diagram of vacuum supply HFM-SFI model 140

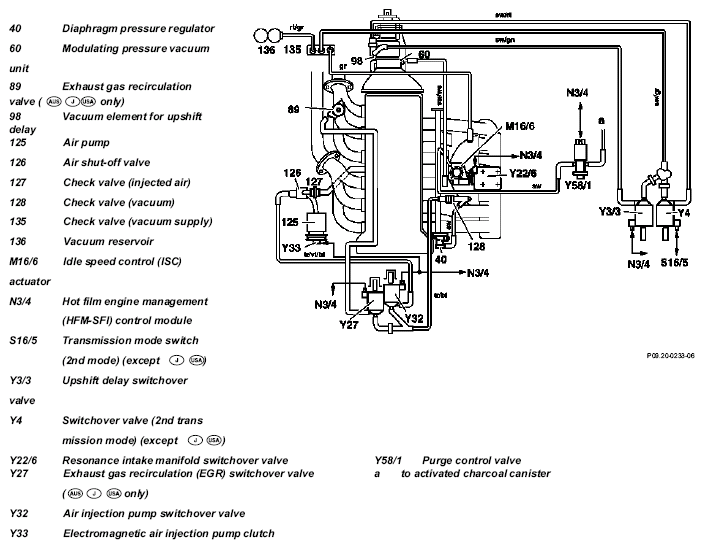

Fig 1: Connecting Diagram Of Intake Manifold (HFM-SFI Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
