Connector Identification

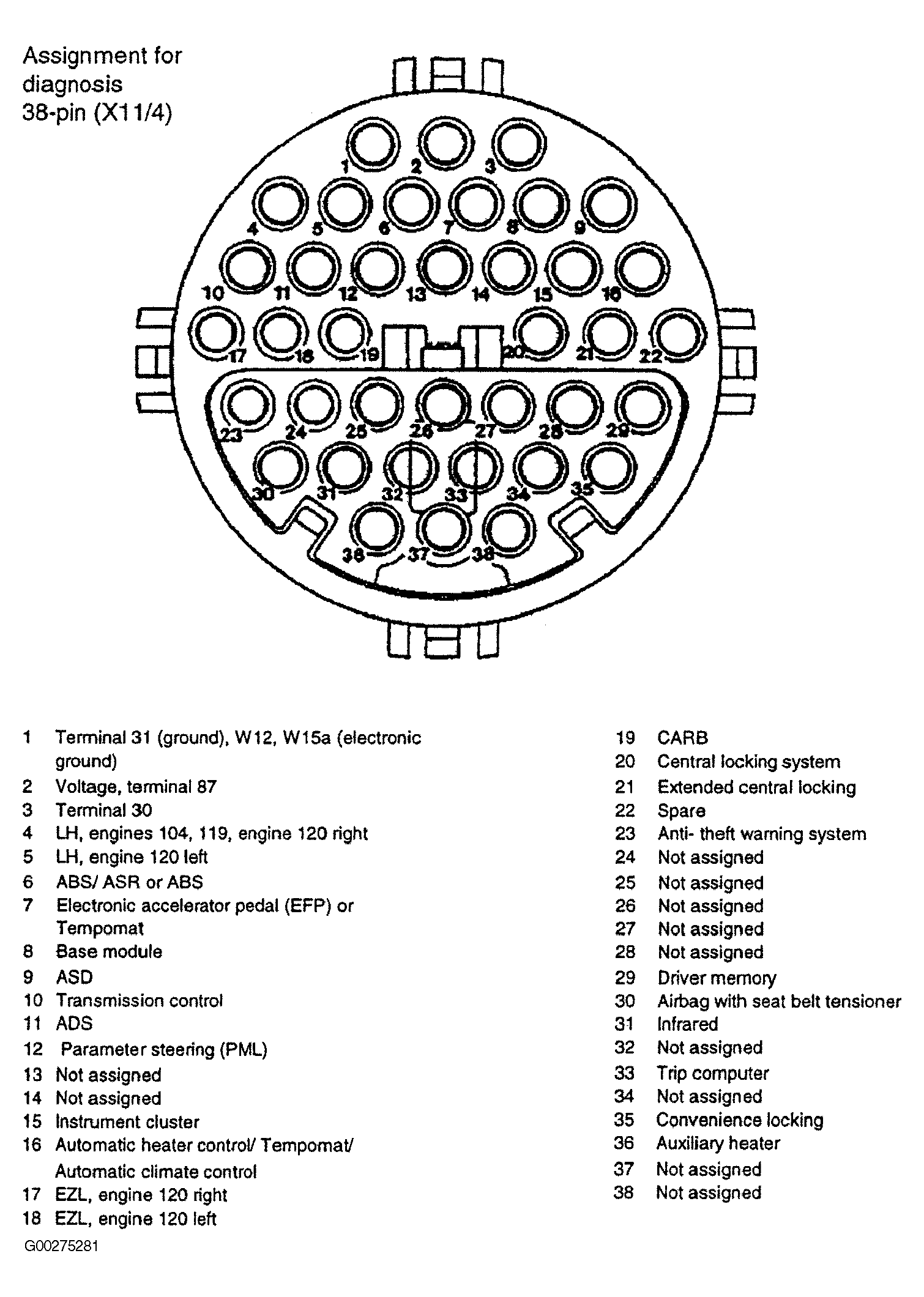

Fig 1: Identifying 38-Pin (X11/4) Data Link Connector Terminal Pin Arrangement
G00275281Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

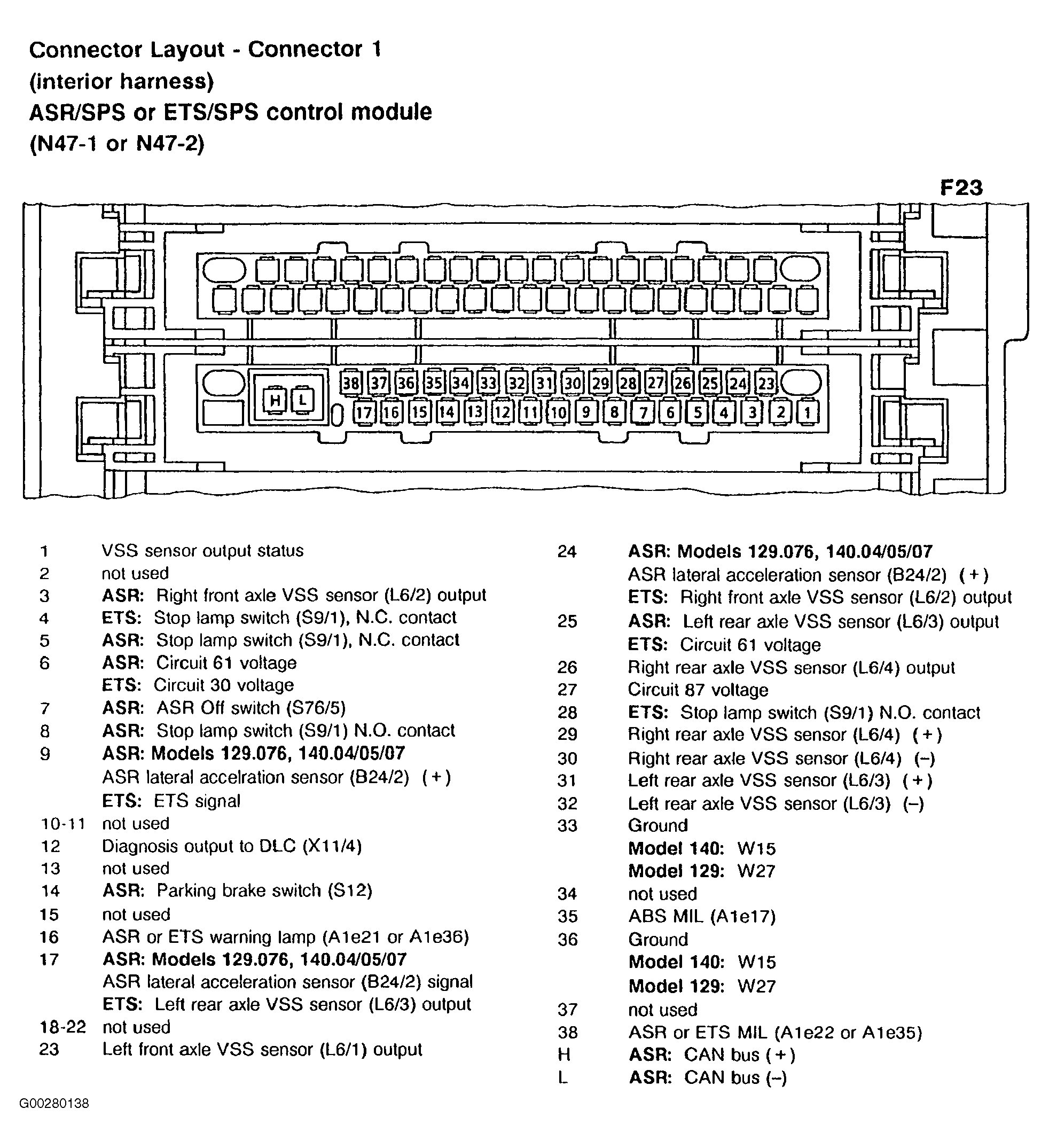

Fig 2: Identifying Connector 1 (ASR/SPS Or ETS/SPS Control Module) Terminal Pin Arrangement
G00280138Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

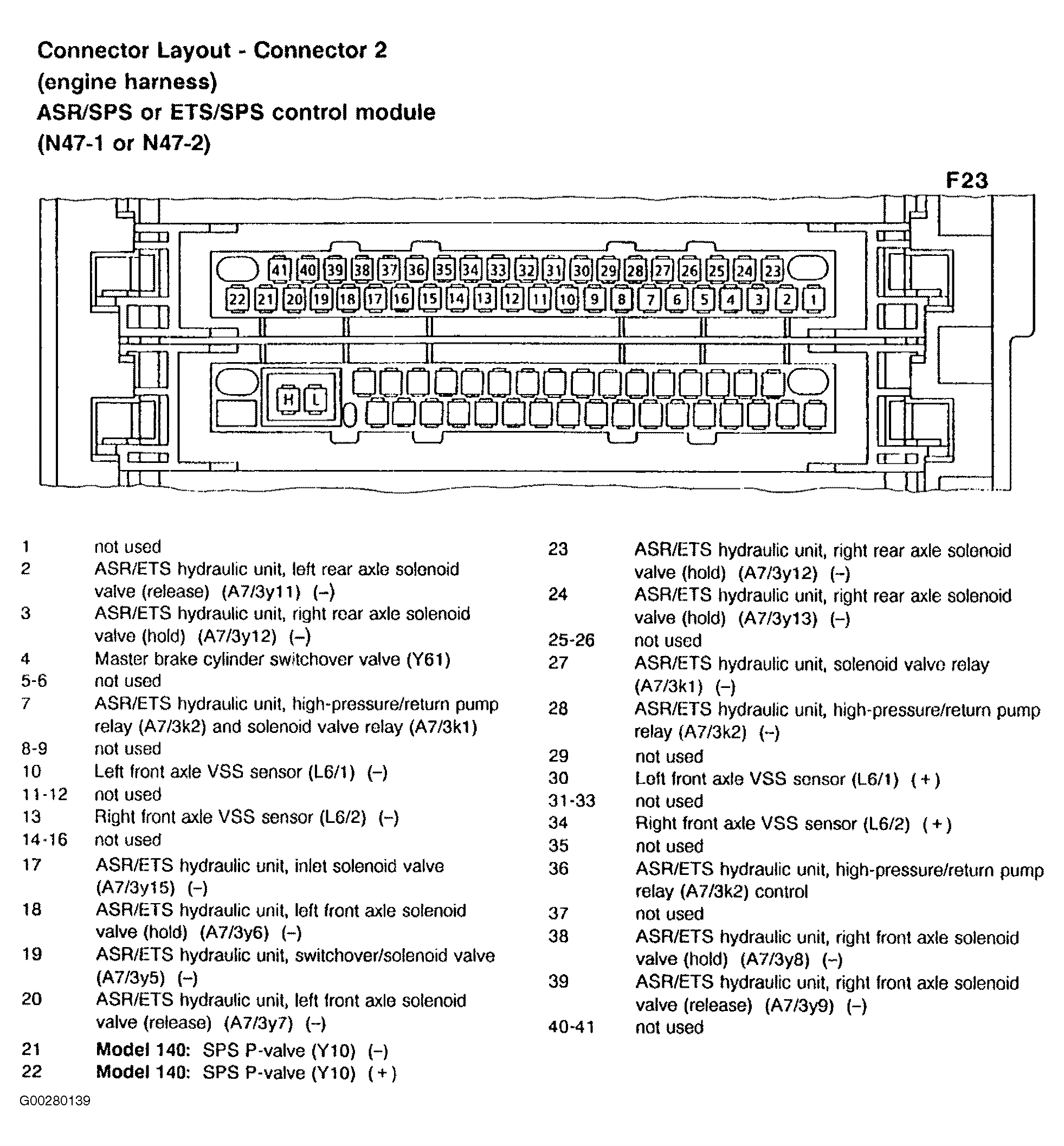

Fig 3: Identifying Connector 2 (ASR/SPS Or ETS/SPS Control Module) Terminal Pin Arrangement
G00280139Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
