Adjusting wire cables for parking lock interlock - AR27.60-P-0965A
TRANSMISSION 722.620 ## up to 1680, 722.621 ## up to 1976, 722.622
Modification notes
| 15.10.97 | Sequence of work steps revised | AR27.60-P-0965A |

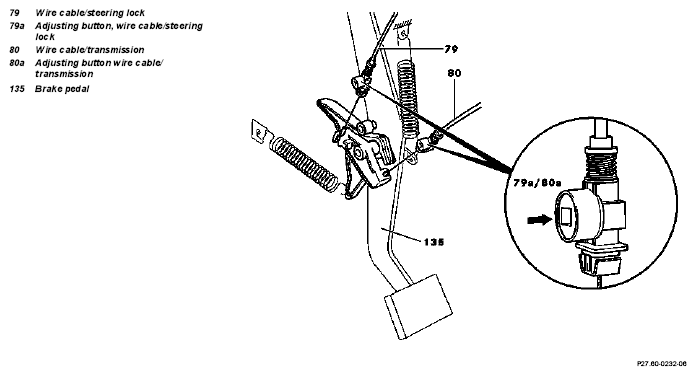

| Adjusting wire cable/transmission | |||
| 1 | Pretension spring on adjusting button (80a) | ||
| 2 | Turn key in steering lock to position "1" | ||
| 3 | Operate brake pedal and selector lever in position "D" | ||
| 4 | Depress brake pedal (135) as far as possible and hold down | ||
| 5 | Adjust wire cable/transmission (80) by pressing adjusting button (80a) (arrow) | ||
| Adjusting wire cable/steering lock | |||
| 6 | Pretension spring on adjusting button (79a) | ||
| 7 | Selector lever in position "P" | ||
| 8 | Turn key in steering lock to position "0" | ||
| 9 | Adjust wire cable/steering lock (79) by pressing the adjusting button (79a) (arrow) |
